The OSN3500 Device SSN5EFS0 Cannot Bind the Time Slot
Jun. 05, 2018
Share:
Problem description
The new Ethernet service of SSN5EFS0 of OSN3500 equipment was opened. It was found that the time gap could not be bound
The process
1 in 3, 4, there is something wrong with the verification interface card slot, physics is N5EFS0, logic configuration for SSN4EFS0, without business, at the same time 5 slot EFT8, with business and normal, but also found to have residual resources can not binding, yuan network correspondence is T2000V200R006C03 management network
2. Try to pre-add SSN4EFS0 in 14 slots, which can bind VC12, indicating that it is an individual phenomenon that business card cannot bind the time gap, and the network element function should be normal
3. Replace slot 3 and slot 4 to slot 14 and slot 15. EFS0 can bind the time slot and solve the problem
4. However, new problems were found again in the process of processing: SDH business was configured, time slots could not be selected, and business could be verified as normal
5. Verify the host 18.50p01, single board version and host supporting
6. After backing up the network metadata database, upload, start and stop the network management process cannot be solved
7. Without command-line tools, command line business configuration validation cannot be performed
8. Considering that the SDH business configuration has been handled before, the type of exception has been displayed on the SDH cross-page, and the situation solved by the client has been restarted. Try to restart the client, and the problem has been solved as expected.

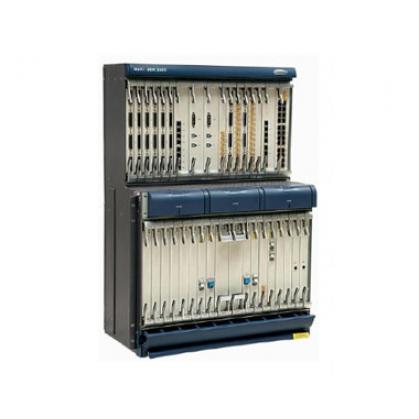

.jpg "Huawei OSN3500")
The solution
Restart client resolution.
Suggestions and summaries
The client problem will cause the network management to display the abnormal situation.
