ME60 Multi-level Reliability Design Ensures Smooth And Relia

 The ME60 product supports user access, and the uplink speed per slot can reach 300 users per second. The online speed of the whole machine can reach 1200 users per second. The establishment of a large-capacity NAT board can reach 2M sessions per second, which guarantees the user experience.

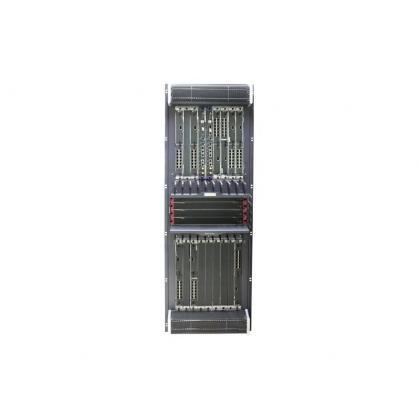

Equipment level: ME60 Router adopts the architecture of control plane and switching plane phase separation, independent bus system, completely independent control channel and forwarding channel, and adopts distributed hardware forwarding. All key components support redundant hot backup and hot plugging. .

Network-level: The software is based on Huawei's highly reliable VRP® routing platform, which provides rich reliability, such as BFD, RRPP, VRRP, NSF, NSR, and FRR. In addition, the ME60 also supports link protection through cross-board trunk technology to build a stable network with end-to-end high reliability protection.

Service level: The Huawei ME60 Router relies on the original hot backup technology to support hot backup of PPPoE, IPoE, L2TP, multicast, CGN NAT, etc. The user does not need to redial the service during the protection switching process, and the service is “zero” interrupted.
