LE0KS9306

  • Model:

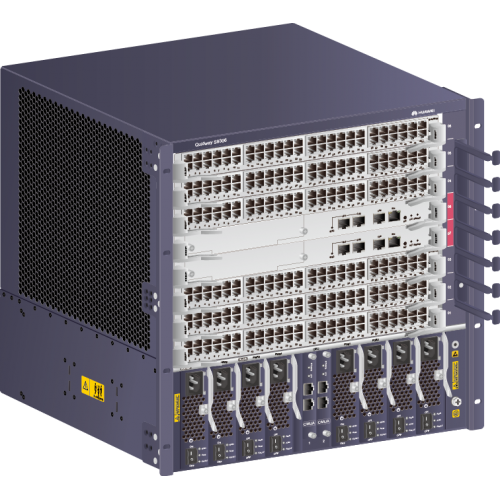

    LE0KS9306 Huawei S9300 Series Switch
  • Detail:

    S9306 Assembly Chassis
  • Price:

    $700.00

  • Condition:

    Brand New Sealed
  • Availability:

    IN STOCK

  • Quantity:

  • Free Technical Support
  • Product Quality Protection
  • On-time Shipment
Overview
S9306 Assembly Chassis



Overview (LE0KS9306)

S9306 is one of the S9300 series switches(S9300 for short). And the LE0KS9306 is the Huawei S9306 Assembly Chassis. The S9300 series switches are next-generation high-end terabit routing switches, developed by Huawei and designed for multiservice convergence. The S9300 design is based on Huawei's intelligent multilayer switching technology to provide high-definition video services, large-capacity wireless networks, elastic cloud computing, IPv6-capable hardware, and integrated security, in addition to high-performance L2/L3 switching services. The S9300 is a highly extensible and reliable platform, integrating switching and routing functions to facilitate end-to-end integrated networks. It is widely used in WANs, MANs, campus networks, and data centers to help enterprises build application-oriented networks.



Product Code

LE0KS9306

Packet forwarding

rate

2880Mpps

Switching Capacity

3.84Tbps

Service slot quantity

6

MPU Slots

2

LPU slots

6

Fan slots

2

System power supply slots

4

PoE power supply slots

4

Chassis power supply

capability

(without PoE power

supply)

1600W

Chassis PoE power

supply capability

8800W

Maximum power consumption (fully loaded, no PoE power supply)

2200 W

Working voltage

DC: –38.4V to –72V AC: 90V to 290V

Dimensions (W x D x H, excluding rack-mounting brackets)

With cable management frames: 442 mm x 585 mm x 441.7 mm (17.4 in. x 23.0 in. x 17.39 in. (10 U))

Without cable management frames: 442 mm x 489 mm x 441.7 mm (17.4 in. x 19.3 in. x 17.39 in. (10 U))

Weight (empty/fully loaded)

15 kg/42 kg (33.1 lb/92.6 lb)
