Specifications
|

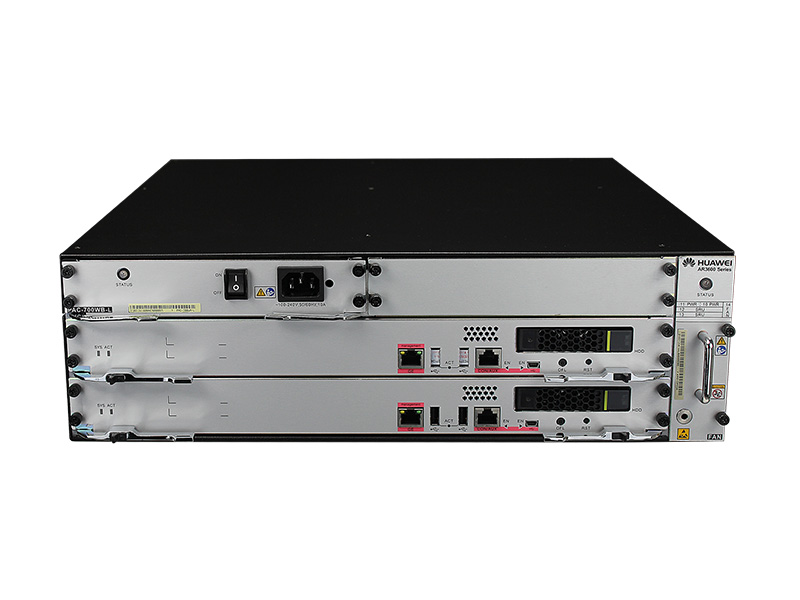

AR3670
|
|
Service Forwarding Performance***
|
4.5 Gbit/s |
|
Management Interface
|
1 |
|
Number of Slots
|
- SIC slot: 2
- WSIC slot (default/maximum): 7 to 8
- XSIC slot (default/maximum): 0 to 6
|
|
Hard Disk
|
1 TB
|
|
Memory
|
8 GB to 24 GB
|
|
Virtual Machines
|
8 (Based on VM, the customers can install Windows OS or Linux OS)
|
| Dimensions (H x W x D) |
130.5 mm x 442 mm x 470 mm |
|
Reliability
|
- Hot swapping of all service cards
- Power supply in 1+1 redundancy mode
|
|
Security
|
- MAC address authentication, 802.1x authentication, Portal authentication, broadcast suppression, ARP security, local authentication, AAA authentication, and RADIUS authentication
- Packet filtering firewall and firewall zone
- Various VPN technologies including IPSec VPN, L2TP VPN, EVPN, and DSVPN
- Encryption algorithm defined by the National Administration for the Protection of State Secrets
|
|
Management and Maintenance
|
- SNMP v1/v2/v3, web NMS, and CWMP
- Deployment by scanning the SN
|
