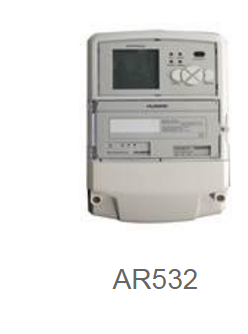

Huawei AR532

Buy Now Inquire Now

Overview

Huawei AR530 Series Agile Gateway

Fixed interfaces: 1 GE, 1 GE Combo, 2 DI, 2 DO, 2 RS485, 1 RS232, 1 USB 2.0, 1 Pulse out, 1 Infrared, and 6 Operation Keys

Plastic, float equipment, internal battery, and AC 110V/220V power

Supports 1 SIM card for 3G/GPRS uplink

Supports Huawei PLC-IoT

Supports 433M/915M RF (optional)

IP51, dustproof, and waterproof

Works at temperatures ranging from -25°C to 70°C

Specifications

Specifications	AR532	AR531-2C-H	AR531GPe-U-H
L2 Switching Capacity	-	5.6 Gbit/s	5.2 Gbit/s
Service Forwarding Performance (IMIX)	-	150 Mbit/s	150 Mbit/s
Fixed Ethernet Ports	1 x GE/1 x GE Combo	2 x GE (SFP) + 6 x FE + 2 x FE Combo	2 x GE (SFP) + 6 x FE
RS485 Ports	2	2-channel	2-channel
DI/DO Ports	2-channel DI/2-channel DO	2-channel DI	2-channel DI
3G	• 1 x MiniSIM, SMA Interface, Support • WCDMA/HSDPA/HSUPA/HSPA+: Band 1, Band 8 • GSM/GPRS/EDGE: 850 MHz/900 MHz/1,800 MHz/1,900 MHz	-	• UMTS/HSDPA (2,100 MHz/900 MHz) • GSM/GPRS/EDGE (850 MHz/900 MHz/1,800 MHz/1,900 MHz) Dual SIM slots, main and backup
RF/PLC	RF: 433M/915M RF (optional) PLC: Huawei PLC-IoT	-	PLC: S-FSK, Huawei Hi-PLC
IP Grade	IP51 (IP54 with outdoor cabinet)	IP51	IP51
Operating Temperature	–25°C to 70°C	–40°C to 70°C	–40°C to 60°C
Dimensions (H x W x D)	290 mm x 180 mm x 95 mm	88 mm x 220 mm x 250 mm	88 mm x 220 mm x 250 mm
