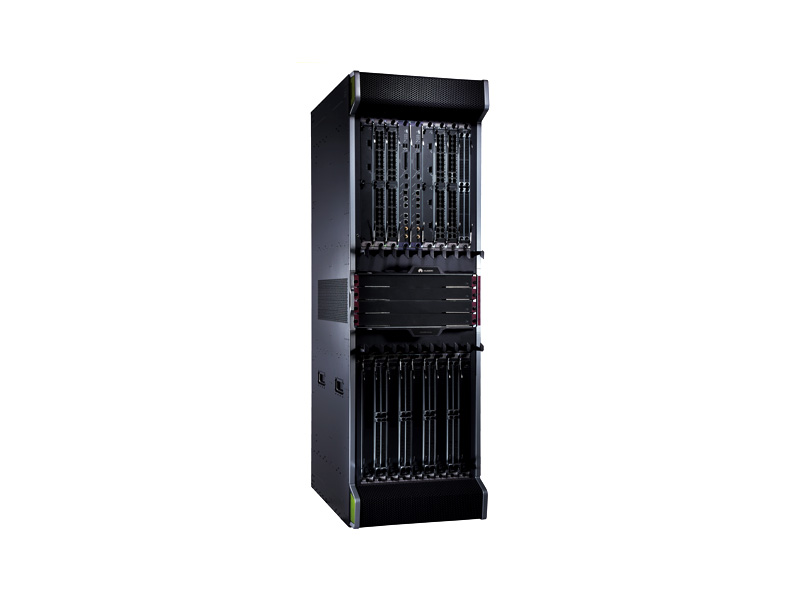

Huawei USG9580 Firewall

Buy Now Inquire Now

Overview

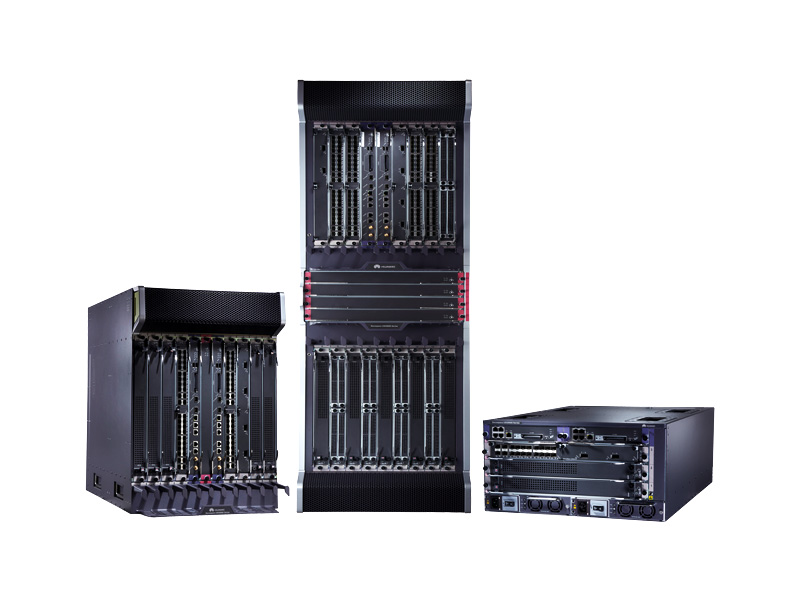

Huawei USG9500 Series Firewall

Product specifications

Model	USG9520	USG9560	USG9580
Performance and Capacity
Firewall Throughput (maximum)*	120 Gbit/s	720 Gbit/s	1,440 Gbit/s
Firewall Throughput (IMIX Traffic)	120 Gbit/s	720 Gbit/s	1,440 Gbit/s
Maximum Number of Concurrent Sessions	120 million	720 million	1.44 billion
IPSec VPN Performance (1,420 Bytes)	84 Gbit/s	336 Gbit/s	720 Gbit/s
Maximum Number of Concurrent IPSec Tunnels	192,000	768,000	1,664,000
IPS Performance	38 Gbit/s	209 Gbit/s	418 Gbit/s
Antivirus Performance	34 Gbit/s	187 Gbit/s	374 Gbit/s
Expansion and I/O
Expansion Slots	3 slots	8 slots	16 slots
Number of MPU Slots	2
Interface Types	GE, 10 GE, 40 GE, and 100 GE interfaces
SPU	Firewall and application security SPUs
Dimensions, Power Supply, and Operating Environment
Dimensions (H x W x D)	175 mm x 442 mm x 650 mm DC 220 mm x 442 mm x 650 mm DC	620 mm x 442 mm x 650 mm	1,420 mm x 442 mm x 650 mm
Weight	Vacant chassis: 15 kg, DC Full configuration: 30.7 kg, DC Vacant chassis: 25 kg, AC Full configuration: 40.7 kg, AC	Vacant chassis: 43.2 kg Full configuration: 112.9 kg	Vacant chassis: 94.4 kg Full configuration: 233.9 kg
Redundant Power Supply	Standard configuration
AC Power Supply	90V AC to 264V AC; 175V AC to 264V AC (recommended)
DC Power Supply	-38V to -72V; Rated -48V
Power consumption	1,270W	3,960W	7,540W
Operating Temperature	Long-term: 0°C to 45°C Short-term: -5°C to 55°C Storage: -40°C to 70°C
Ambient Humidity	Long-term: 5% RH to 85% RH, non-condensing Short-term: 5% RH to 95% RH, non-condensing Storage: 0% RH to 95% RH, non-condensing
