Home / Product / Security / Huawei AntiDDoS8000 DDoS / Huawei AntiDDoS8160 employs

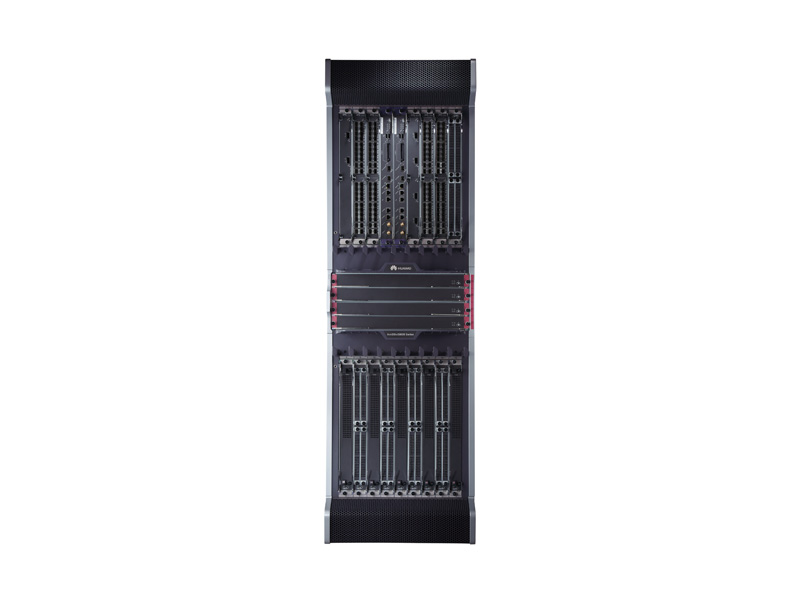

Huawei AntiDDoS8160 employs

  • Model:

    Huawei AntiDDoS8160 employs

  • Detail:

    Huawei AntiDDoS8000 employs

  • Price:

    $3000.00

  • Condition:

    Brand New Sealed

  • Availability:

    IN STOCK

  • Quantity:

Buy Now Inquire Now
  • Free Technical Support
  • Product Quality Protection
  • On-time Shipment
Product Overview Reviews
Overview
Huawei AntiDDoS8000 employs

 Hardware Specifications

Model AntiDDoS8030 AntiDDoS8080 AntiDDoS8160
Interfaces and performance
Throughput Up to 120 Gbit/s Up to 720 Gbit/s Up to 1,440 Gbit/s
Throughput/Slot Up to 80 Gbit/s Up to 160 Gbit/s Up to 160 Gbit/s
Mitigation Rate/Slot Up to 60 Mpps Up to 60 Mpps Up to 60 Mpps
Latency 80 μs 80 μs 80 μs
Expansion Slots 3 8 16
Expansion LPU FW-LPUF-120, 2 sub-slots FW-LPUF-120, 2 sub-slots
FW-LPUF-240, 2 sub-slots		 FW-LPUF-120, 2 sub-slots
FW-LPUF-240, 2 sub-slots
Expansion Interfaces 24 x GE (SFP); 5 x 10 GE (SFP+); 6 x 10 GE (SFP+); 12 x 10 GE (SFP+); 1 x 40 GE (CFP); 1 x 100 GE (CFP)
Dimensions
Height x Width x Depth DC: 175 mm x 442 mm x 650 mm (4U)
AC: 220 mm x 442 mm x 650 mm (5U)		 620 mm x 442 mm x 650 mm (14U) 1,420 mm x 442 mm x 650 mm (32U)
Weight DC chassis: 15 kg (empty), 30.7 kg (full)
AC chassis: 25 kg (empty), 40.7 kg (full)		 43.2 kg (empty), 112.9 kg (full) 94.4 kg (empty), 233.9 kg (full)
Power and Environment
Power Supply Rated input voltage:
DC: -48V
AC: 175V to 264V; 50 Hz/60 Hz
Maximum input voltage range:
DC: -72V to -38V
AC: 90V to 264V; 50 Hz/60 Hz		 Rated input voltage:
DC: -48V
AC: 175V to 264V; 50 Hz/60 Hz
Maximum input voltage range:
DC: -72V to -38V
AC: 90V to 264V; 50 Hz/60 Hz		 Rated input voltage:
DC: -48V
AC: 175V to 264V; 50 Hz/60 Hz
Maximum input voltage range:
DC: -72V to -38V
AC: 90V to 264V; 50 Hz/60 Hz
Power Consumption 1 x FW-LPUF-120 + 2 x ADS-SPUC-B + 2 x ADS-SPC-80-01:
DC: 1,066W (avg.), 1,272W (max.)
AC: 1,185W (avg.), 1,414W (max.)		 3 x FW-LPUF-240 + 5 x ADS-SPUD-B + 10 x ADS-SPC-80-01:
DC: 4,025W (avg.), 4,823W (max.)
AC: 4,282W (avg.), 5,132W (max.)		 6 x FW-LPUF-240 + 9 x ADS-SPUD-B + 18 x ADS-SPC-80-01:
DC: 7,387W (avg.), 8,930W (max.)
AC: 7,858W (avg.), 9,500W (max.)
Power Redundancy DC: Double hot-swappable power modules
AC: Double hot-swappable power modules		 DC: 4 hot-swappable PEM modules
AC: 4 PEM modules + 1 external AC power chassis		 DC: 8 hot-swappable PEM modules
AC: 8 PEM modules + 2 external AC power chassis
Operating Temperature 0°C to 45°C (long-term), -5°C to 50°C (short-term)
Storage Temperature -40°C to 70°C
Operating Humidity 5% RH to 85% RH, non-condensing (long-term), 5% RH to 95% RH, non-condensing (short-term)
Storage Humidity 0% RH to 95% RH
Certifications
Safety Certifications Electro Magnetic Compatibility (EMC) certification
CB, Rohs, FCC, MET, C-tick, and VCCI certification
