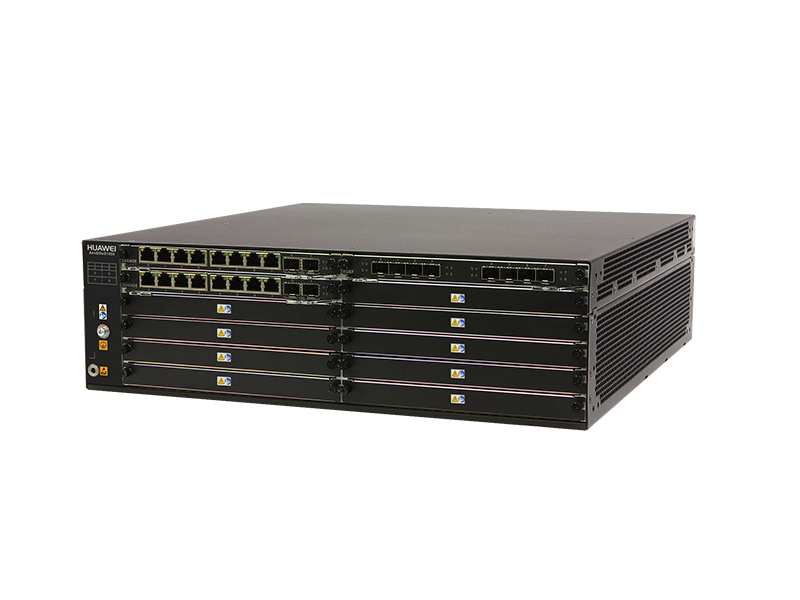

Huawei AntiDDoS1680 protection system

  • Model:

    Huawei AntiDDoS1680 protection system
  • Detail:

    Huawei AntiDDoS1600 DDoS protection system
  • Price:

    $3000.00

  • Condition:

    Brand New Sealed
  • Availability:

    IN STOCK

  • Quantity:

  • Free Technical Support
  • Product Quality Protection
  • On-time Shipment
Overview
Huawei AntiDDoS1600 DDoS protection system

 Hardware Specifications

Model AntiDDoS1650 AntiDDoS1680
Interfaces and performance
Throughput Up to 5 Gbit/s Up to 8 Gbit/s
Mitigation Rate Up to 3 Mpps Up to 7 Mpps
Latency 80 μs 80 μs
Standard Interfaces 8 x GE (RJ45) + 4 x GE (SFP) 16 x GE (RJ45) + 8 x GE (SFP) + 4 x 10 GE (SFP)
Expansion Slots 2 x WSIC 5 x WSIC
Expansion Interfaces 8 x GE (RJ45); 8 x GE (RJ45) + 2 x 10 GE (SFP+); 8 x GE (SFP); 4 x GE (RJ45) Bypass card
Deploy Mode In-line; out-of-path (static defense); out-of-patch (dynamic defense)
Function Options for detecting or cleaning
External Bypass Multi mode or single mode GE link; Multi mode or single mode 10 GE link
Dimensions
Height x Width x Depth 44.4 mm × 442 mm × 421 mm (1U) 130.5 mm × 442 mm × 470 mm (3U)
Weight Standard: 6 kg
Fully configured: 8.7 kg
Standard: 20 kg
Fully configured: 24 kg
Power and Environment
Power Supply Rated input voltage:
AC: 100V to 240V, 50 Hz/60 Hz
Maximum input voltage range:
AC: 90V to 264V, 47 Hz to 63 Hz
Maximum input current:
AC: 2.5A
Rated input voltage:
DC: -48V to -60V
AC: 100V to 240V, 50 Hz/60 Hz
Maximum input voltage range:
DC: -48V to -60V
AC: 90V to 264V, 47 Hz to 63 Hz
Maximum input current:
AC: 5A
Power Consumption 170W 350W
Power Redundancy Single AC power module supply. Options for 2 x AC power modules redundant, support hot-swap power supplies AC: 1+1 power redundancy, hot-swappable
DC: 1+1 power redundancy, hot-swappable
Operating Temperature 0°C to 45°C (long-term), -5°C to 55°C (short term)
Storage Temperature -40°C to 70°C
Operating Humidity 5% RH to 95% RH, non-condensing
Storage Humidity 5% RH to 95% RH, non-condensing
Certifications
Safety Certifications Electro Magnetic Compatibility (EMC) certification
CB, CCC, CE-SDOC, ROHS, REACH & WEEE (EU), C-TICK, ETL, FCC&IC, VCCI, and BSMI

Ordering information

AntiDDoS1000 Ordering Information

Model Description
Main Equipment
AntiDDoS1650-AC AntiDDoS1650 AC Host (8 GE (RJ45) + 4 GE (SFP), 8 GB Memory, 1 AC Power)
AntiDDoS1680-DC AntiDDoS1680 DC Host (16 GE (RJ45) + 8 GE (SFP) + 4 x 10 GE (SFP), 16 GB Memory, 2 DC Power)
AntiDDoS1680-AC AntiDDoS1680 AC Host (16 GE (RJ45) + 8 GE (SFP) + 4 x 10 GE (SFP), 16 GB Memory, 2 AC Power)
Business Module Group
WSIC-8GE 8 GE Electric Ports Interface Card
WSIC-4GEBYPASS 4 GE Electric Ports Bypass Card
WSIC-8GEF 8 GE Optical Ports Interface Card
WSIC-2XG8GE 2 x 10 GE Optical Ports + 8 GE Electric Ports Interface Card
Management Software
LIC-ADS-NOFA00 ATIC Basic Feature Summary
