Processors
|
1 or 2 full-series Intel® Xeon® Scalable Processors of up to 205W
|
|
Memory
|
24 DDR4 DIMM slots, up to 2,666 MT/s |
|
Internal Storage
|
Three types of hard drive configurations supported:

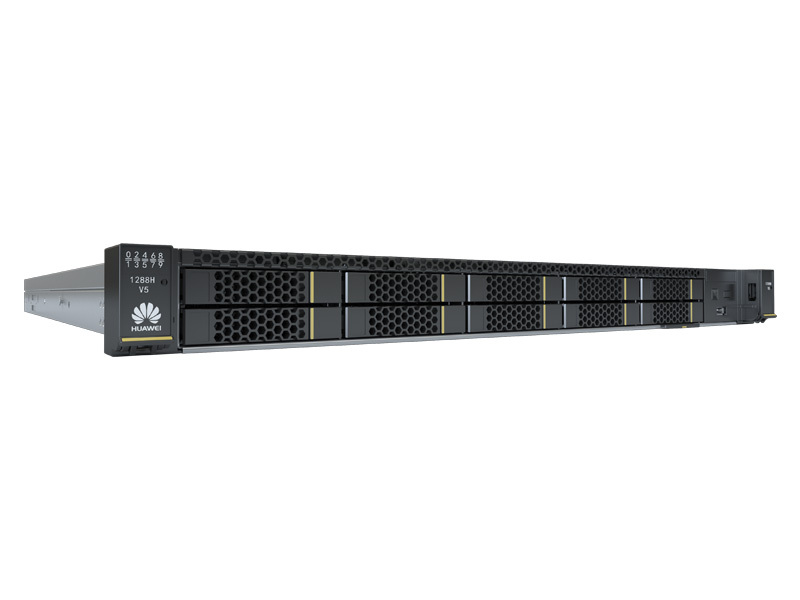

10 x 2.5-inch hard drives (6 to 8 NVMe SSDs and 2 to 4 SAS/SATA HDDs, total number of drives ≤ 10) (see note 1), which can be:
−0 to 6 NVMe SSDs + 0 to 4 SAS/SATA HDDs
−0 to 7 NVMe SSDs + 0 to 3 SAS/SATA HDDs
−0 to 8 NVMe SSDs + 0 to 2 SAS/SATA HDDs

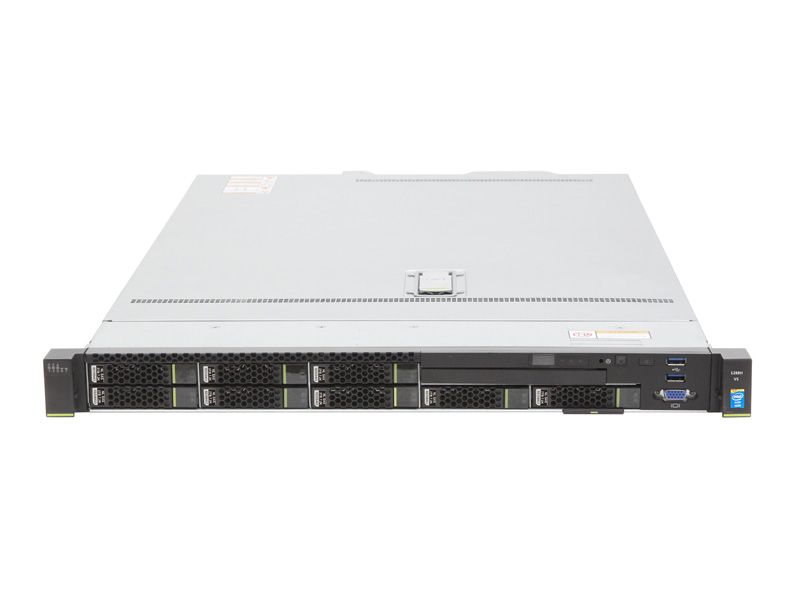

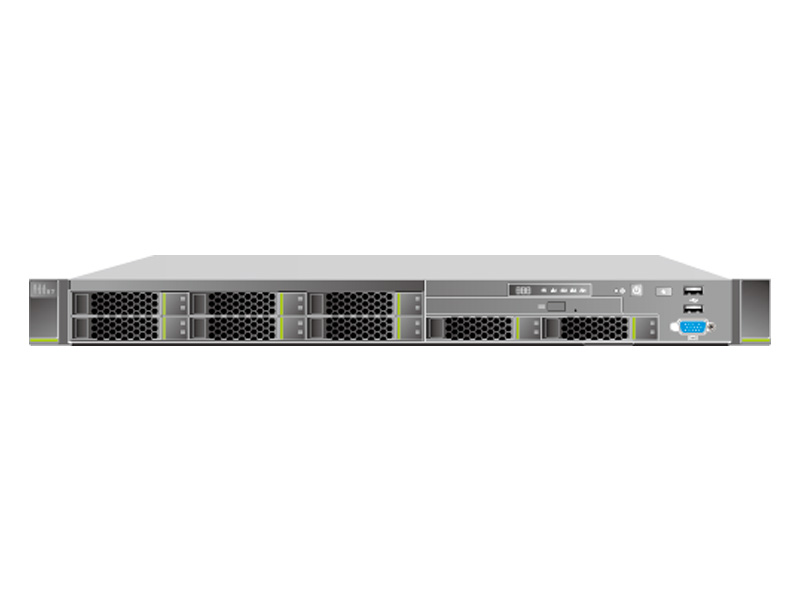

8 x 2.5-inch SAS/SATA HDDs or SSDs (the NVMe model supports 4 NVMe SSDs) (see note 2)
4 x 3.5-inch SAS/SATA HDDs or SSDs
Flash storage:
2 M.2 SSDs (see note 3)
|
|
RAID Support
|
RAID 0, 1, 10, 5, 50, 6, or 60
Configured with a supercapacitor for power-off protection for the cache (optional)
RAID state transition, RAID configuration memory, self-diagnosis, and web-based remote configuration
|
|
Network Ports
|
LOM NIC: 2 x 10 GE and 2 GE ports
FlexibleLOM: 2 GE or 4 GE, 2 x 10 GE, or 1 or 2 x 56 Gbit/s Fourteen Data Rate (FDR) InfiniBand (IB) ports
|
|
PCIe Expansion
|
Up to 5 Peripheral Component Interconnect express (PCIe) slots:
Two x16 slots for two half-height half-length PCIe 3.0 x16 standard cards
One x8 slot for a full-height half-length PCIe 3.0 x16 standard card
One expansion slot for a RAID controller card
One expansion slot for a FlexibleLOM card
|
|
Fan Modules
|
7 hot-swappable counter-rotating fan modules with optional N+1 redundancy
|
|
Power Supply Units
|
2 hot-swappable PSUs with support for 1+1 redundancy and the following configuration options (see note 4):
550W AC Platinum PSUs
900W AC Platinum/Titanium PSUs
1,500W AC Platinum PSUs
1,500W 380V HVDC PSUs
1,200W -48V to -60V DC PSUs |
| Management |
Based on the Huawei iBMC chip, provides comprehensive management features such as fault diagnosis, automated O&M, and hardware security hardening; supports mainstream standard interfaces such as Redfish, SNMP, and IPMI 2.0, facilitating integration with third-party management software; provides remote management interfaces based on HTML5 and VNC KVM; supports features such as Smart Provisioning and Agentless to simplify management.
Optionally configured with Huawei eSight management software; provides advanced management features such as stateless computing, batch OS deployment, and automated firmware upgrade, enabling smart and automated entire-lifecycle management. |
|
Operating Temperature
|
5ºC to 45ºC (41ºF to 113ºF), and ASHRAE A3 and A4 compliant
|
| Special Notices |
Note 1: The 10-SFF drive model is planned for release in December 2017
Note 2: The NVMe model is planned for release in December 2017
Note 3: The 2-M.2 SSD feature is planned for release in December 2017
Note 4: The Titanium PSU and 1,200W and 1,500W PSUs are planned for release in 2018 |
