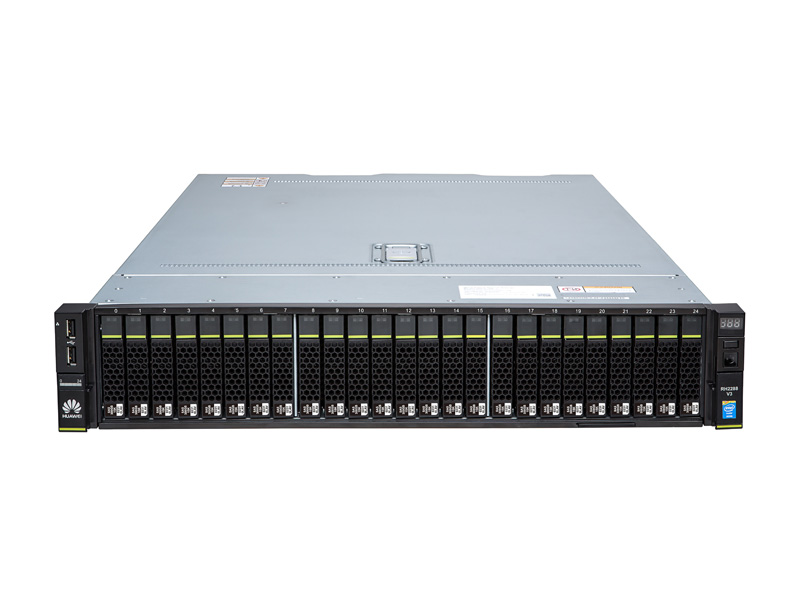

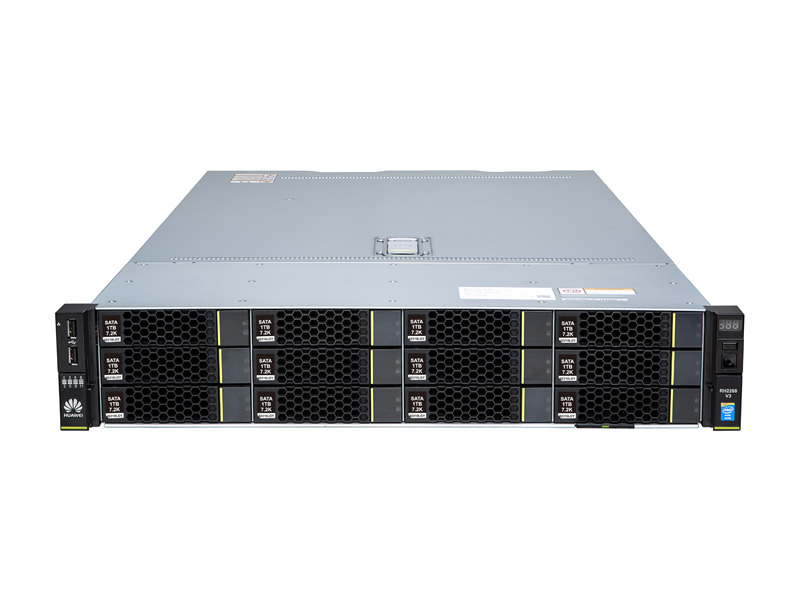

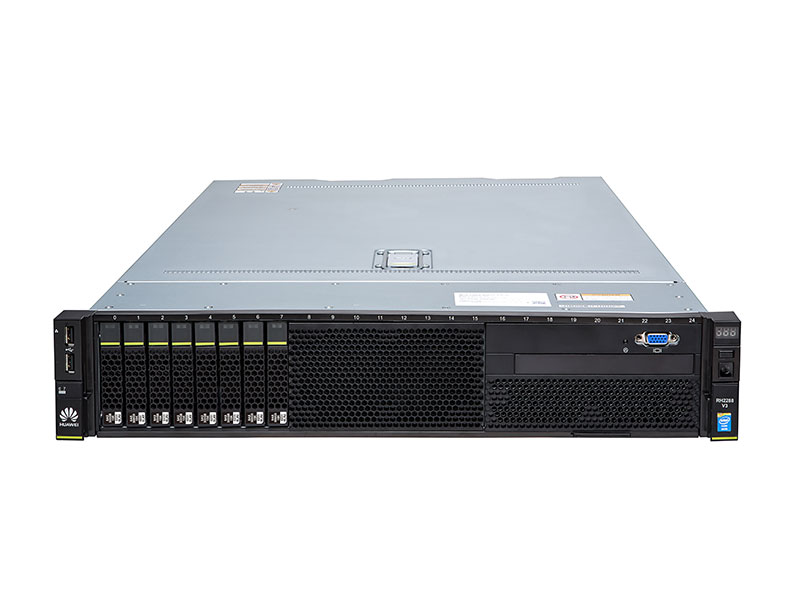

Huawei RH2288H V3 Rack Server

  • Model:

    Huawei RH2288H V3 Rack Server
  • Detail:

    Huawei’s FusionServer RH2288H V3 is a next-generation 2U 2-socket rack server. Engineered with a highly efficient design, the RH2288H V3 delivers superb computing performance and supports large local storage capacities, effortlessly accommodating rapidly growing data. In addition, the RH2288H V3 offers flexible resource scalability, making it an ideal choice for Internet, Big Data, cloud computing, High-Performance Computing (HPC), telecom services, and mission-critical applications. Meet today’s demands and prepare for the future with Huawei’s flexible, easy-to-manage RH2288H V3 rack server.
  • Price:

    $3000.00

  • Condition:

    Brand New Sealed
  • Availability:

    IN STOCK

  • Quantity:

  • Free Technical Support
  • Product Quality Protection
  • On-time Shipment
Overview
Huawei’s FusionServer RH2288H V3 is a next-generation 2U 2-socket rack server. Engineered with a highly efficient design, the RH2288H V3 delivers superb computing performance and supports large local storage capacities, effortlessly accommodating rapidly growing data. In addition, the RH2288H V3 offers flexible resource scalability, making it an ideal choice for Internet, Big Data, cloud computing, High-Performance Computing (HPC), telecom services, and mission-critical applications. Meet today’s demands and prepare for the future with Huawei’s flexible, easy-to-manage RH2288H V3 rack server.



Specifications

Processors

Intel® Xeon® E5-2600 v3/v4 series processors

Memory

24 DDR4 RDIMMs/LRDIMMs

Internal Storage

Supports the following hard disk configurations:

      • Eight front 2.5-inch SSDs, SAS, or SATA HDDs

      • Twelve front 3.5-inch SAS or SATA HDDs and two or four rear 2.5-inch or 3.5-inch SSDs, SAS, or SATA HDDs

      • Twelve front 3.5-inch SAS or SATA HDDs (NVMe model supports four NVMe SSD disks) and two rear 2.5-inch or 3.5-inch SSDs, SAS, or SATA HDDs

      • Twelve front 3.5-inch SAS or SATA HDDs (NVMe model supports twelve NVMe SSD disks)

      • Twenty-four front 2.5-inch SAS or SATA HDDs (NVMe model supports 24 NVMe SSD disks)

      • Twenty-five front 2.5-inch SSDs, SAS, or SATA HDDs and two or three rear 2.5-inch SSDs, SAS, or SATA HDDs

Supports built-in Flash:

      • Two SD cards


RAID

  • RAID 0, 1, 10, 5, 50, 6, or 60
  • Configured with a supercapacitor for power-off protection for the cache (optional)
  • RAID state transition, configuration memory, self-diagnosis, and web-based remote configuration

LOM Network Ports

2 GE or 4 GE ports, or 2 x 10 GE ports, or 2 x 56 Gbit/s FDR InfiniBand ports

PCIe Expansion

Up to 9 PCIe 3.0 slots

Fan Modules

Hot-swappable fan modules in N+1 redundancy mode

Power Supply Units

2 hot-swappable PSUs in 1+1 redundancy mode

Management

  • Uses the Huawei Hi1710 management chip and independent ports
  • Supports standard management interfaces, such as SNMP and IPMI; provides GUI, remote KVM, virtual media, SOL, Predictive Failure Analysis (PFA), intelligent power supply, remote control, and hardware monitoring
  • Incorporates a touchscreen LCD panel for fault diagnosis
  • Supports Huawei eSight management software and integration with third-party management systems, such as VMware vCenter, Microsoft System Center, and Nagios

Operating Temperature

5°C to 45°C (41°F to 113°F), ASHRAE Class A3 and A4 compliant
