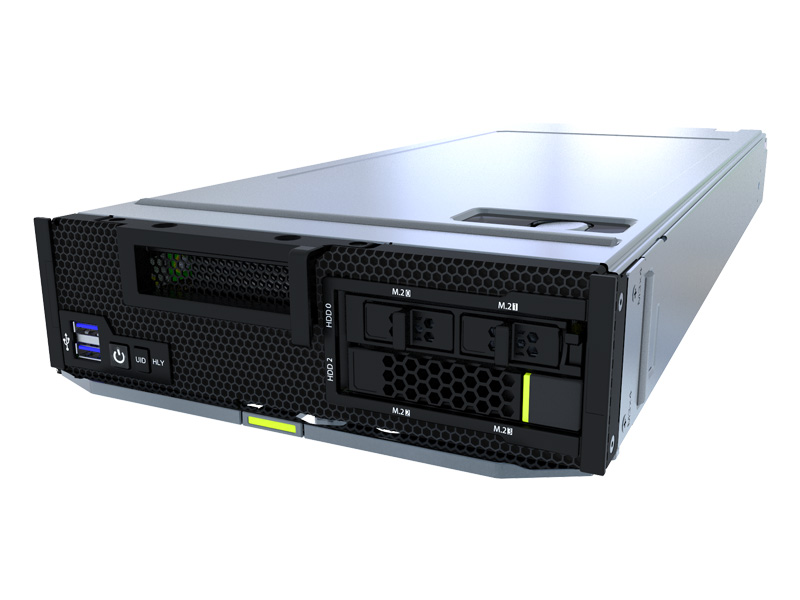

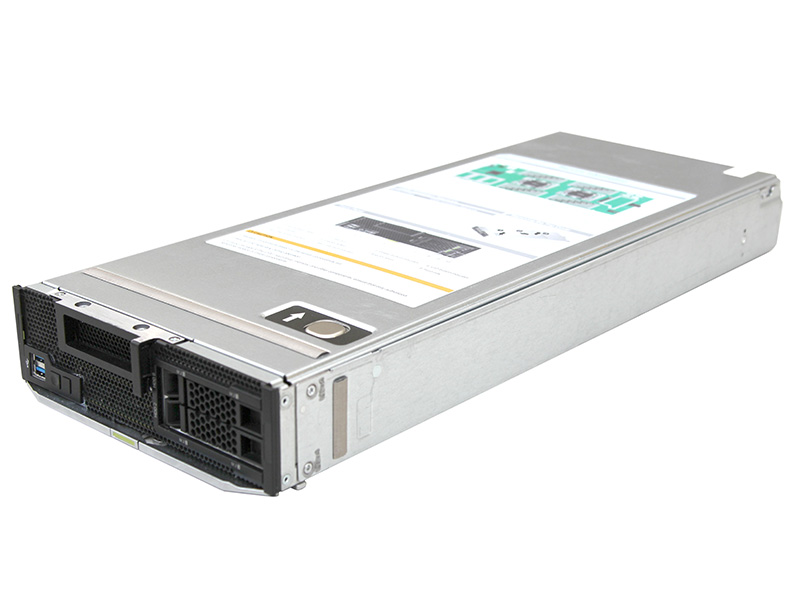

Huawei CH121 V5 Half-Width Compute Node

  • Model:

    Huawei CH121 V5 Half-Width Compute Node
  • Detail:

    Huawei FusionServer CH121 V5 is a compute node optimized for services such as virtualization, cloud computing, HPC, and Network Function Virtualization (NFV). It delivers high-density computing capabilities and ultra-large memory capacity. Running on the new-generation Intel® Xeon® Scalable Processors, it supports the entire processor family with power consumption of up to 205W. CH121 V5 provides 24 DDR4 DIMM slots and supports 4 M.2 SSDs for storage.
  • Price:

    $5000.00

  • Condition:

    Brand New Sealed
  • Availability:

    IN STOCK

  • Quantity:

  • Free Technical Support
  • Product Quality Protection
  • On-time Shipment
Overview
Huawei FusionServer CH121 V5 is a compute node optimized for services such as virtualization, cloud computing, HPC, and Network Function Virtualization (NFV). It delivers high-density computing capabilities and ultra-large memory capacity. Running on the new-generation Intel® Xeon® Scalable Processors, it supports the entire processor family with power consumption of up to 205W. CH121 V5 provides 24 DDR4 DIMM slots and supports 4 M.2 SSDs for storage.



Specifications

Form Factor

2-socket blade server node in a half-width slot

Processors

1 or 2 Intel® Xeon® Scalable Processors of up to 205W

Memory

24 DDR4 DIMM slots, with memory speeds of up to 2,666 MT/s, and memory capacity of up to 3 TB

Internal Storage

2 x 2.5-inch SSDs, or SAS/SATA hard drives; 2 NVMe SSDs supported

Or up to 4 M.2 SSDs (SATA interface), individually hot-swappable

RAID Support

2 x 2.5-inch SSDs or SAS/SATA hard drives; supports RAID 0 or 1

4 M.2 SSDs; supports RAID 0, 1, 10, 5, or 6

PCIe Expansion

2 mezzanine cards (x16)

1 half-height half-length PCIe x16 standard card (front-accessible)

Operating Systems

Microsoft Windows Server 2008/2012

Red Hat Enterprise Linux

SUSE Linux Enterprise Server

Oracle Linux

CentOS

Huawei FusionSphere

Citrix XenServer

VMware

Operating Temperature

5ºC to 40ºC (41ºF to 104ºF), compliant with ASHRAE CLASS A3

Dimensions (H x W x D)

60.46 mm x 210 mm x 537.2 mm (2.38 in. x 8.27 in. x 21.15 in.)
