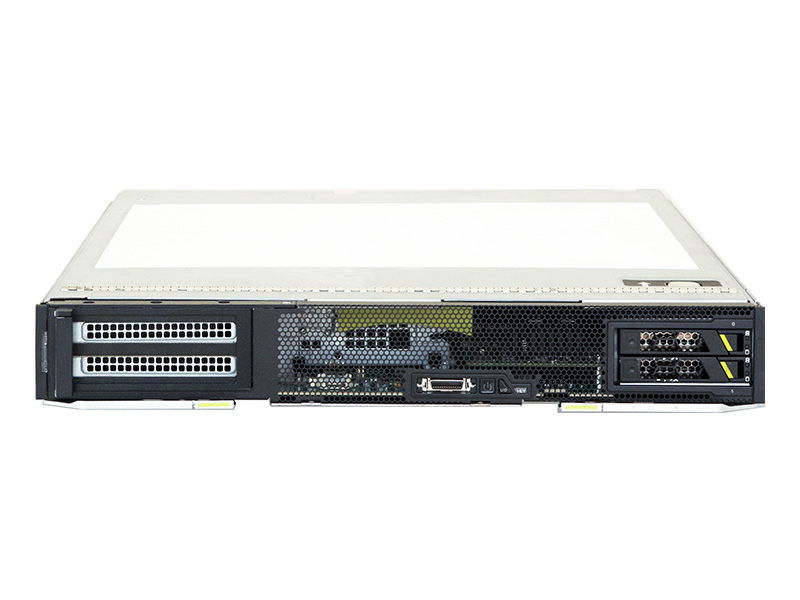

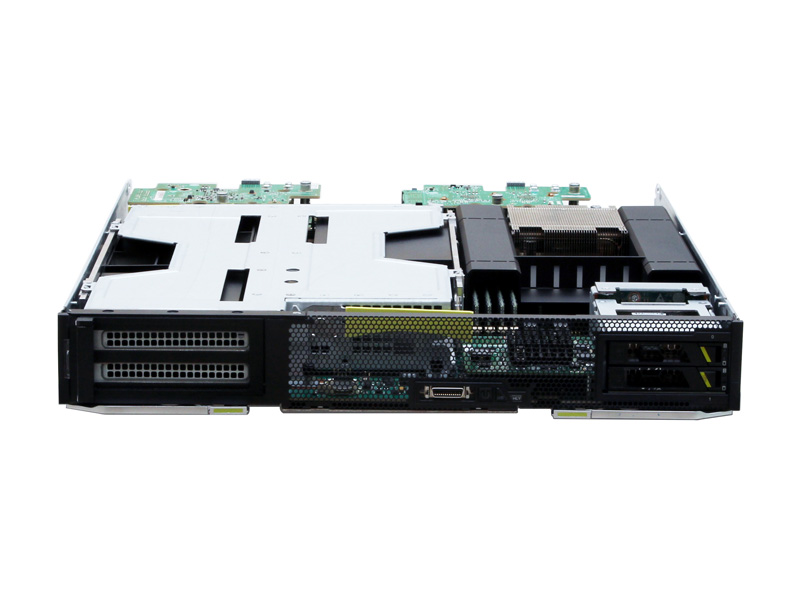

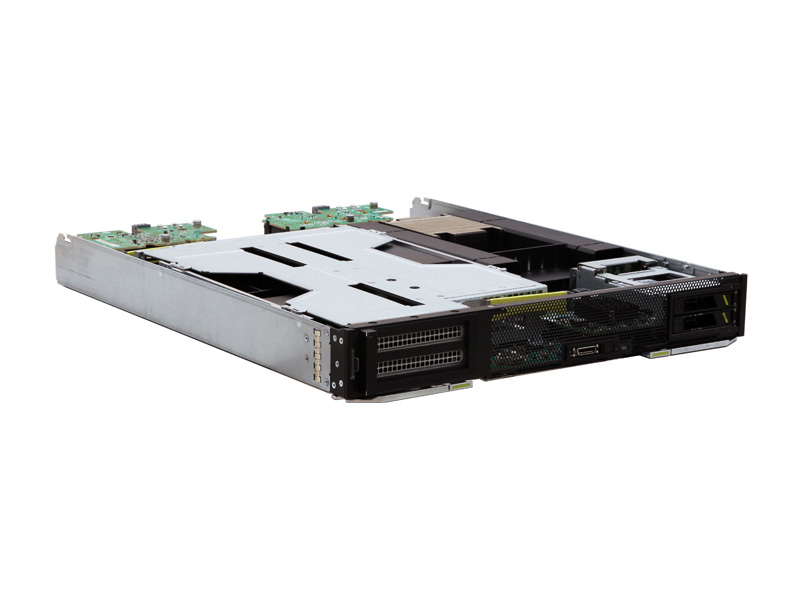

Huawei CH220 V3 I/O Expansion Compute Node

Detail:
This highly expandable compute node is designed for application acceleration; server, network, and desktop virtualization; and superior scalability.

Buy Now Inquire Now

Overview

This highly expandable compute node is designed for application acceleration; server, network, and desktop virtualization; and superior scalability.

Excellent expandability, dense computing capabilities, and large memory capacity

Intel® Xeon® Processor E5-2600 v3/v4 series delivers up to two 22-core processors on each node
Six standard PCIe card expansion slots for various PCIe configuration modes provide the best possible PCIe expansion capability on a single compute node
Reduces O&M costs with remote deployment and fault location technologies such as SOL, KVM over IP, virtual DVD-ROM drive, WebUI and IPMI 2.0-compliance
Nodes include efficient, secure power consumption analysis and control capabilities, including power-off mode, and Intel® NM 3.0 compliance

Form Factor	Full-width 2-socket compute node
Number of Processors	1 or 2
Processor Model	Intel® Xeon® E5-2600 v3/v4 series
Number of DIMMs	16 DDR4 DIMMs, providing a maximum memory capacity of 1 TB
Number of Hard Disks	2 x 2.5-inch SSDs, SAS HDDs, or SATA HDDs
Built-in Storage	2 x Mini-SSDs (SATA DOM) 2 x Micro-SD cards (RAID 1) 1 x USB 3.0
RAID Support	RAID 0 and 1
PCIe Expansion	2 PCIe x 16 + 2 PCIe x 8 Mezz modules, supporting 6 standard PCIe slots. The following configuration modes are supported: 6 full-height, half-length single-slots 1 full-height, full-length, dual-slot and 4 full-height, half-length single-slots 2 full-height, full-length dual-slots 2 full-height, full-length, single-slots and 4 full-height, half-length single-slots
Operating Systems Supported	Microsoft Windows Server 2008/2012 Red Hat Enterprise Linux SUSE Linux Enterprise Server Oracle Linux CentOS Huawei Fusionsphere Citrix XenServer VMware
Operating Temperature	5ºC to 40ºC, ASHRAE Class A3 compliant
Dimensions	Height: 60.46 mm (2.38 in.) Width: 423 mm (16.65 in.) Depth: 537.2 mm (21.15 in.)
