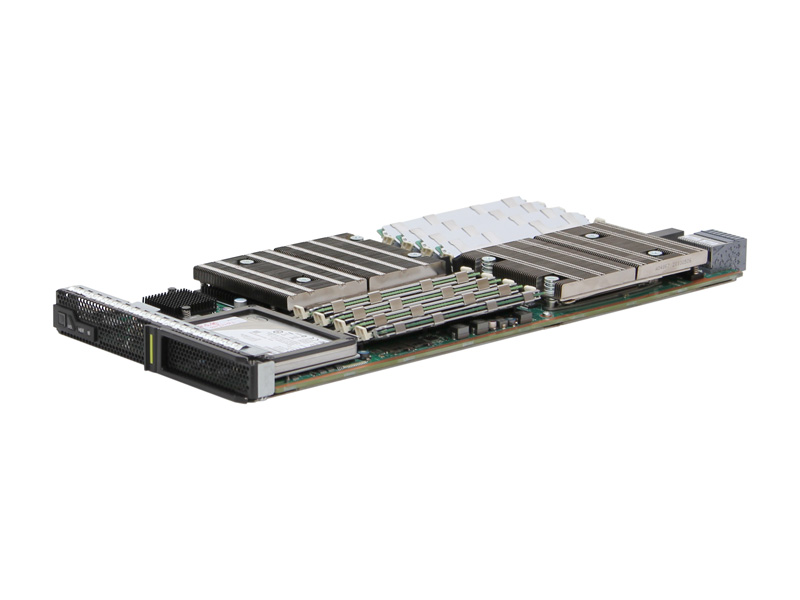

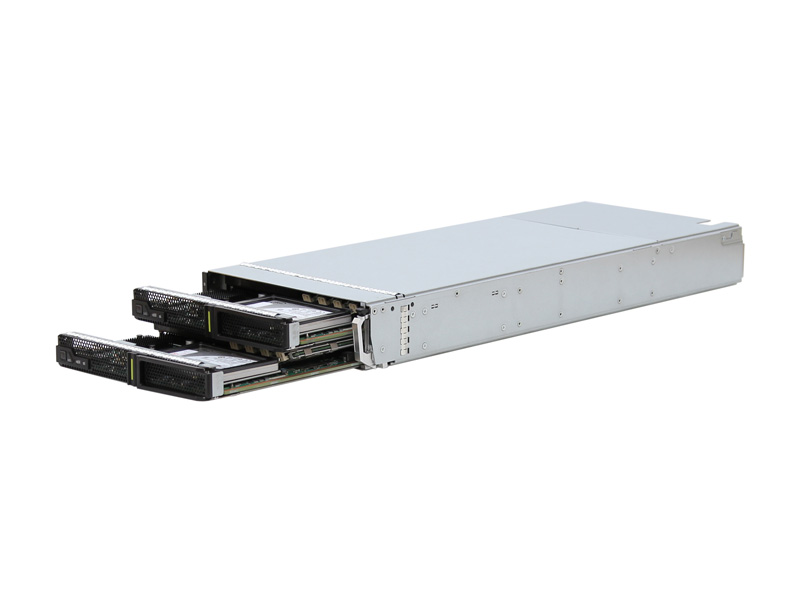

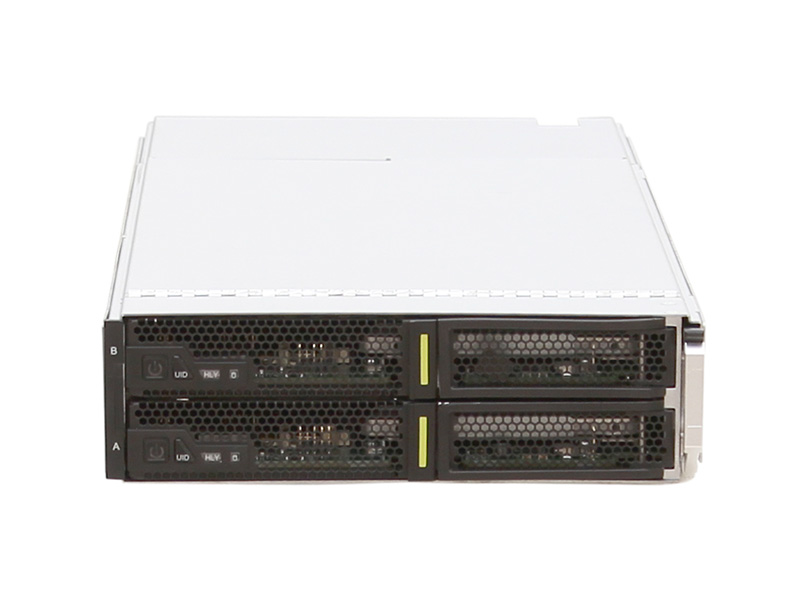

Huawei CH140 V3 Compute Node

  • Model:

    Huawei CH140 V3 Compute Node
  • Detail:

    Optimized for HPC and dense computing enterprise services, the CH140 V3 provides ultra-high computing capabilities. A half-width slot supports two 2-socket compute nodes; each node can be maintained independently. The CH140 V3 uses Intel® Xeon® E5-2600 v3/v4 series processors, supports eight DIMM slots and one hard disk, as well as 2 built-in Micro-SD slots supporting RAID 1.
  • Price:

    $5000.00

  • Condition:

    Brand New Sealed
  • Availability:

    IN STOCK

  • Quantity:

  • Free Technical Support
  • Product Quality Protection
  • On-time Shipment
Overview
Optimized for HPC and dense computing enterprise services, the CH140 V3 provides ultra-high computing capabilities. A half-width slot supports two 2-socket compute nodes; each node can be maintained independently. The CH140 V3 uses Intel® Xeon® E5-2600 v3/v4 series processors, supports eight DIMM slots and one hard disk, as well as 2 built-in Micro-SD slots supporting RAID 1.



Facilitates ultra-high computing density for enterprise services with easy management and energy savings

  • Supports the full series of Intel® Xeon® E5-2600 v3/v4 processors to deliver up to 2 x 22-core of computing capacity; a half-width slot supports two small slots in two layers for installing two independent 2-socket compute nodes
  • Reduces O&M costs by enabling remote deployment and fault location technologies such as SOL, KVM over IP, virtual DVD-ROM drive, WebUI and IPMI 2.0-compliant
  • Provides efficient, secure power consumption analysis and control capabilities. Complies with Intel® NM 3.0. Supports an intelligent and secure power-off mode for compute nodes
  • Specifications

    Form Factor

    Two 2-socket, twin compute nodes in a half-width slot

    Number of Processors

    1 or 2 in each 2-socket compute node

    Processor Models

    Intel® Xeon® E5-2600 v3/v4 series

    Number of DIMMs

    8 DDR4 DIMMs for each 2-socket compute node

    Number of Hard Disks

    One 2.5-inch SSD/SATA for each 2-socket compute node

    RAID Support

    N/A

    PCIe Expansion

    2 twin nodes share 2 Mezz modules

    OS Support

    Microsoft Windows Server 2008/2012

    Red Hat Enterprise Linux

    SUSE Linux Enterprise Server

    Oracle Linux

    CentOS

    Citrix XenServer

    VMware

    Operating Temperature

    5°C to 35°C

    Dimensions

    Height: 60.46 mm (2.38 in.)

    Width: 210 mm (8.27 in.)

    Depth: 537.2 mm (21.15 in.)
