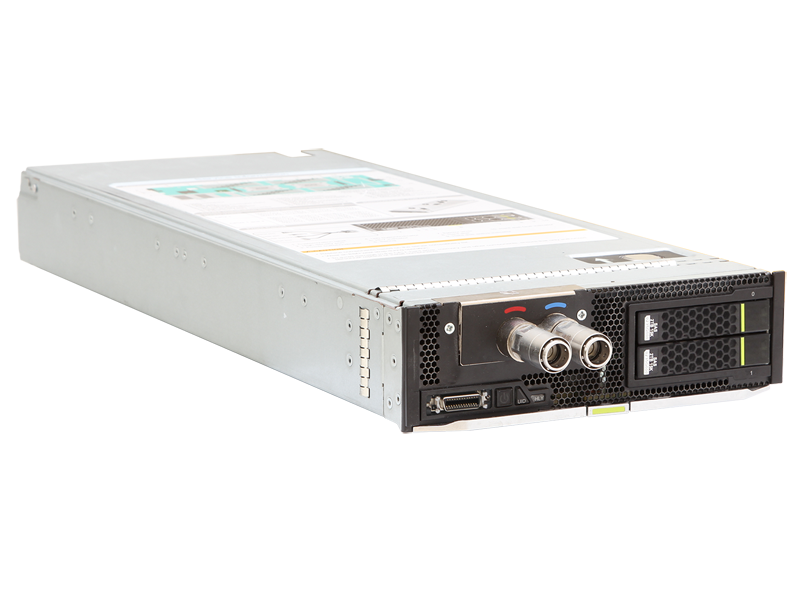

Huawei CH121L V3 Compute Node

  • Model:

    Huawei CH121L V3 Compute Node
  • Detail:

    This liquid cooling compute node combines dense computing with an ultra-large memory. It is optimized for enterprise service applications such as virtualization, cloud computing, and High-Performance Computing (HPC).
  • Price:

    $2000.00

  • Condition:

    Brand New Sealed
  • Availability:

    IN STOCK

  • Quantity:

  • Free Technical Support
  • Product Quality Protection
  • On-time Shipment
Overview
This liquid cooling compute node combines dense computing with an ultra-large memory. It is optimized for enterprise service applications such as virtualization, cloud computing, and High-Performance Computing (HPC).



Dense computing capabilities and large memory capacity for enterprise service applications — virtualization, cloud computing, and HPC clusters

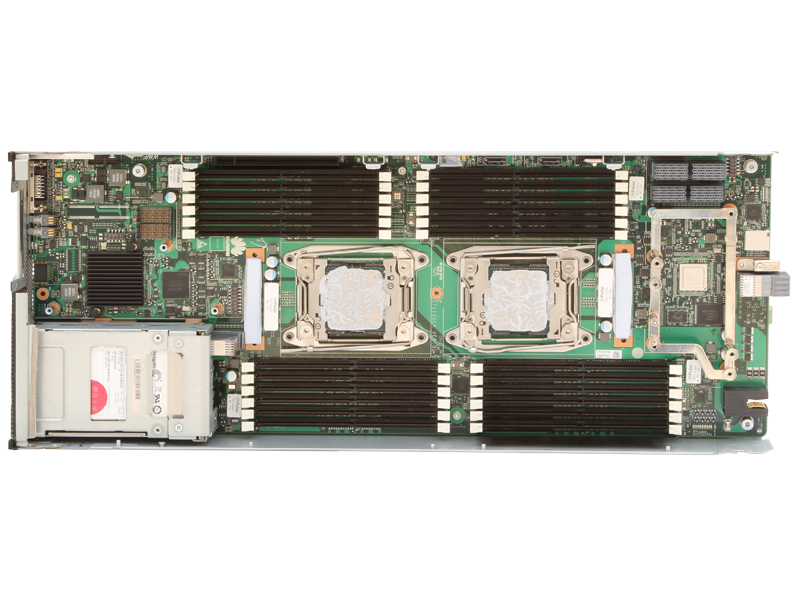

  • Intel® Xeon® processor E5-2600 v3/v4 family contain up to two 22-core processors to power each compute node
  • 24 DDR4 DIMMs, providing a maximum memory capacity of 1.5 TB
  • Reduces O&M costs with remote deployment and fault location technologies such as SOL, KVM over IP, virtual DVD-ROM drive, WebUI, and IPMI 2.0 compliance
  • Nodes include efficient, secure power consumption analysis and control capabilities, including power-off mode, and Intel® NM 3.0 compliance

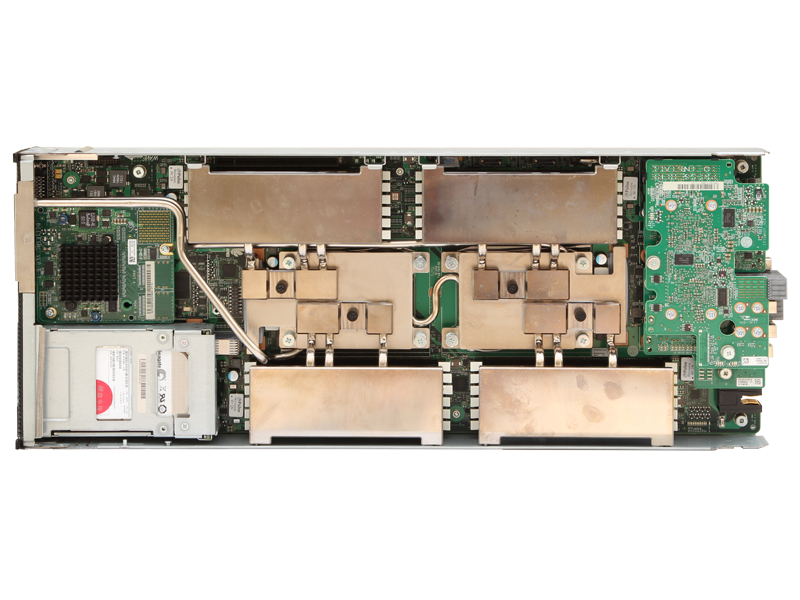

  • Supports board-level liquid cooling; adopts integrated cooling plates without internal solder points; 80% of heat dissipated through liquid; supports individually maintainable CPUs and memory modules
  • Specifications

    Form Factor

    Half-width 2-socket compute node

    Number of Processors

    1 or 2

    Processor Model

    Intel® Xeon® E5-2600 v3/v4 series

    Number of DIMMs

    24 DDR4 DIMMs, providing a maximum memory capacity of 1.5 TB

    Number of Hard Disks

    2 x 2.5-inch SSDs, SAS HDDs, or SATA HDDs, supporting 2 x NVMe SSDs

    Built-in Storage

    2 x Mini-SSDs (SATA DOM)

    2 x Micro-SD cards (RAID 1)

    1 x USB 3.0

    RAID Support

    RAID 0 and 1

    PCIe Expansion

    2 PCIe x 16 Mezz modules

    1 standard PCIe x 16 full-height, half-length card

    Operating Systems Supported

    Microsoft Windows Server 2008/2012

    Red Hat Enterprise Linux

    SUSE Linux Enterprise Server

    Oracle Linux

    CentOS

    Huawei Fusionsphere

    Citrix XenServer

    VMware

    Operating Temperature

    5ºC to 40ºC, ASHRAE Class A3 compliant

    Dimensions

    Height: 60.46 mm (2.38 in.)

    Width: 210 mm (8.27 in.)

    Depth: 537.2 mm (21.15 in.)
