| Model |
ES3500P V3 |
ES3600P V3 |

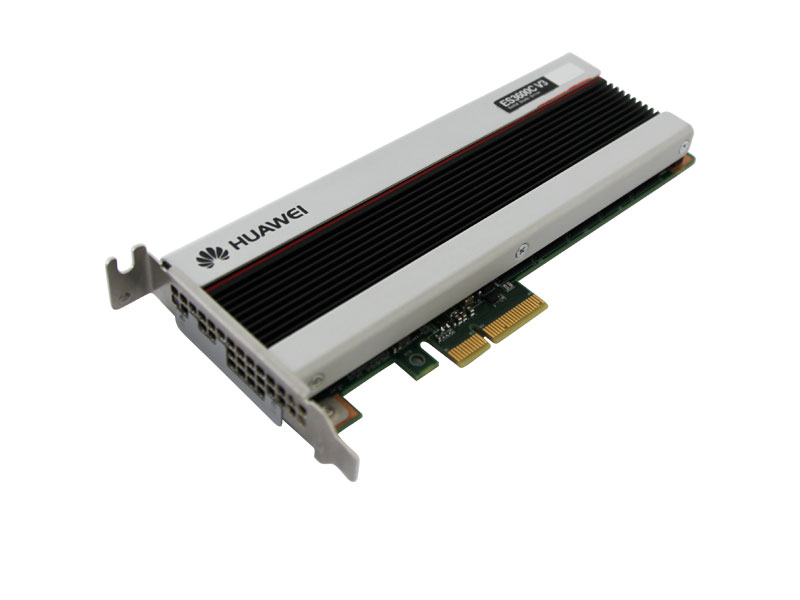

ES3600C V3 |
ES3620P V3 |
ES3620C V3 |
| Form Factor |
U.2 |
U.2 |
HH-HL card |
U.2 |
HH-HL card |
| Bus Interface |
PCIe Gen 3.0 x 4 |
PCIe Gen 3.0 x 4 |
PCIe Gen 3.0 x 4 |
PCIe Gen 3.0 x 4 |
PCIe Gen 3.0 x 4 |
| NVMe Standard |
NVMe 1.2 |
NVMe 1.2 |
NVMe 1.2 |
NVMe 1.2 |
NVMe 1.2 |
| Usable Capacity |
800 GB; 1.2/2.0/3.2/4.0 TB |
800 GB; 1.2/1.6/2.0/3.2 TB |
800 GB; 1.2/1.6/3.2 TB |
6.4 TB |
6.4 TB |
Sequential Read/Write
Bandwidth @ 1 MB |
800 GB: 2.4/1.0 GB/s
1.2 TB: 2.9/1.7 GB/s
2.0 TB: 3.1/1.9 GB/s
3.2 TB: 2.9/1.8 GB/s
4.0 TB: 3.1/1.9 GB/s |
800 GB: 2.7/1.1 GB/s
1.2 TB: 3.1/1.8 GB/s
1.6 TB: 3.2/1.95 GB/s
2.0 TB: 2.75/1.55 GB/s
3.2 TB: 3.1/1.95 GB/s |
800 GB: 2.7/1.1 GB/s
1.2 TB: 3.1/1.8 GB/s
1.6 TB: 3.2/1.95 GB/s
3.2 TB: 3.1/1.95 GB/s |
6.4 TB: 3.0/1.8 GB/s |
6.4 TB: 3.0/1.8 GB/s |
Stable Random Read/Write
IOPS @ 4 KB |
800 GB: 600k/55k
1.2 TB: 710k/85k
2.0 TB: 800k/50k
3.2 TB: 715k/78k
4.0 TB: 760k/38k |
800 GB: 680k/100k
1.2 TB: 800k/160k
1.6 TB: 800k/175k
2.0 TB: 650k/110k
3.2 TB: 800k/170k |
800 GB: 680k/100k
1.2 TB: 760k/160k
1.6 TB: 800k/175k
3.2 TB: 800k/170k |
6.4 TB: 750k/40k |
6.4 TB: 750k/40k |
Max Random Write
IOPS @ 4 KB |
800 GB: 250k
1.2 TB: 405k
2.0 TB: 452k
3.2 TB: 428k
4.0 TB: 464k |
800 GB: 275k
1.2 TB: 428k
1.6 TB: 464k
2.0 TB: 380k
3.2 TB: 464k |
800 GB: 275k
1.2 TB: 428k
1.6 TB: 464k
3.2 TB: 464k |
6.4 TB: 200k |
6.4 TB: 200k |
Average Read/Write
Latency @ 4 KB |
88 µs/18 µs |
88 µs/18 µs |
88 µs/18 µs |
110 µs/20 µs |
110 µs/20 µs |
| Power Consumption |
7W to 21W |
7W to 22W |
7W to 22W |
7W to 25W |
7W to 25W |
| 5-year Endurance* |
1 DWPD
4.0 TB: 0.56 DWPD |
3 DWPD |
3 DWPD |
3 DWPD** |
3 DWPD** |
| Max. Data Written*** |
800 GB: 1.46 PBW
1.2 TB: 2.19 PBW
2.0 TB: 2.92 PBW
3.2 TB: 5.84 PBW
4.0 TB: 4.08 PBW |
800 GB: 4.38 PBW
1.2 TB: 6.57 PBW
1.6 TB: 8.76 PBW
2.0 TB: 10.95 PBW
3.2 TB: 17.52 PBW |
800 GB: 4.38 PBW
1.2 TB: 6.57 PBW
1.6 TB: 8.76 PBW
3.2 TB: 17.52 PBW |
6.4 TB: 35.04 PBW |
6.4 TB: 35.04 PBW |
Notes: Specifications are subject to change without notice. Performance results are based on internal testing and use. Results and performance may vary according to configurations and systems, including drive capacity, system architecture, and applications
1. *5-year Endurance (DWPD, Disk Writes per Day): Disk write times per day over 5 years
2. 6.4 TB 3 DWPD, 35.04 PBW endurance: 8 KB alignment, 8 KB data block 100% random write
3. ***Maximum Data Written (PBW, PetaByte Writes): 100% random write tested with 4 KB IO size and 4 KB alignment
4. Bandwidth testing standard: RHEL 7.0 OS, FIO tool, 1 thread 512 QD 1 MB data block sequential R/W
5. IOPS testing standard: RHEL 7.0 OS, FIO tool, 8 thread/64 QD/4 KB data block random R/W
6. Latency testing standard: RHEL 7.0 OS, FIO tool, 1 thread/1 QD/4 KB data block random R/W
