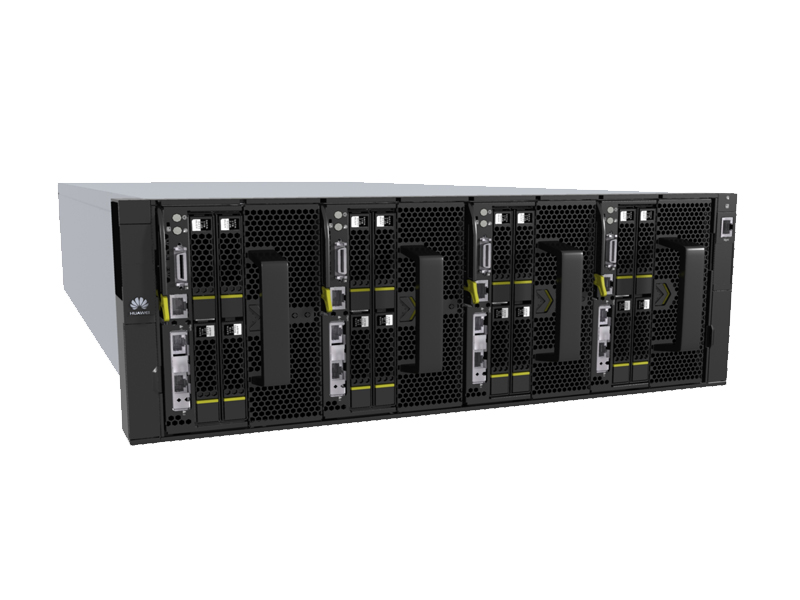

Huawei X6800 Data Center Server

Provides high performance, large local storage space, and supports SSD technologies

• Supports a variety of high-density server nodes in a 4U chassis
• Allows flexible configuration of compute, storage, and GPU acceleration nodes to meet different service requirements
• LOM network port supports 2 x GE, 4 x GE, 2 x 10 GE, 2 x GE + 2 x 10 GE, 2 x 10G Base-T or 2 x 56G IB
• Supports centralized power supply, high-voltage DC, with little internal cabling
• Reduces system-level power consumption with optimal heat dissipation design, uses a double-faced cellular board, and supports airflow separation between server nodes and PSUs

• Specifications

  Specifications	X6800
  Form Factor	4U multi-node server
  PCIe Expansion	8 rear PCIe slots
  PSU	Four redundant AC PSUs (750W/1,200W/1,500W) or four redundant DC PSUs (800W)
  Fans	5 fan modules in N+1 redundancy mode
  Management	Uses HMM and iBMC for management, adopts Huawei Hi1710 management chip, supports standard management interfaces, such as SNMP and IPMI, and provides a GUI, remote KVM, virtual media, SOL, intelligent power supply, remote control, and hardware monitoring Supports Huawei eSight management software, provides remote configuration and deployment in batches, performance monitoring, and firmware upgrades
  Power Supply	110V to 220V AC -48V DC
  Operating Temperature	5°C to 40°C (41°F to 104°F), ASHRAE Class A3 compliant
  Certifications	CE, UL, FCC, CCC, and RoHS
  Dimensions (H x W x D)	170 mm x 447 mm x 898 mm (6.69 in. x 17.60 in. x 35.35 in.)
