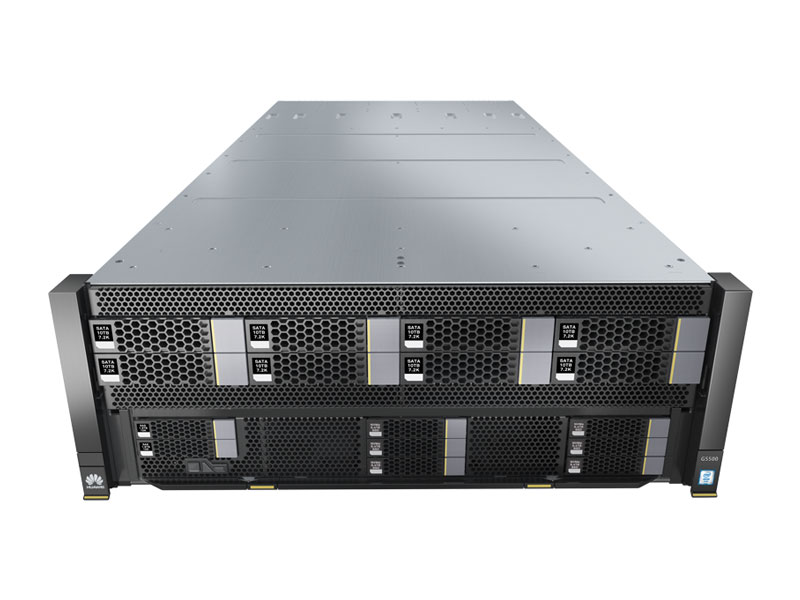

Huawei G5500 Chassis Data Center

Superb performance, flexible configuration, and fully modular design

Exceptional Heterogeneous Computing Capabilities

• The 4U chassis supports up to 8 FHFL or 32 HHHL heterogeneous accelerator cards
• Supports GPUDirect RDMA and Peer-to-Peer interconnect technologies, enabling direct memory access for multiple GPU cards

Flexible Topology Configuration

• Supports 1 full-width or 2 half-width heterogeneous computing nodes
• Supports one-click topology switching and multiple topologies with different CPU/GPU configuration ratios

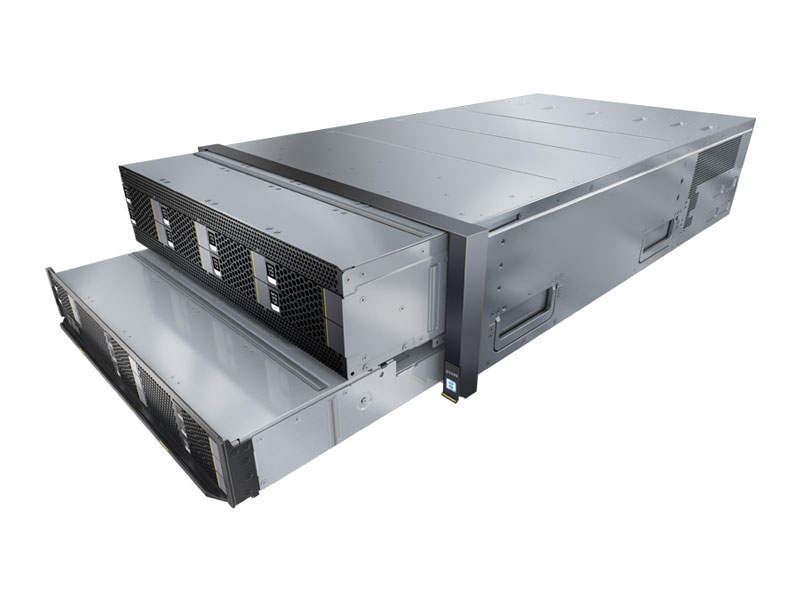

Fully Modular Design

• The design of decoupled CPU module and heterogeneous modules support CPU and heterogeneous unit for long-term evolution
• Power Supply Units (PSUs), hard drives, and fan modules are designed in a fully modular style, supporting hot swap and redundancy backup and simplifying O&M

• Specifications

  Product	G5500 Chassis
  Node Support	1 full-width or 2 half-width heterogeneous computing nodes
  Power Supply Units	Four 80 Plus Platinum 2,200W AC hot-swappable PSUs N+N redundancy supported
  Fan Modules	6 hot-swappable fan modules with smart speed tuning N+1 redundancy supported
  PCIe Expansion	4 PCIe Gen3 x16 HHHL NICs (IB/OPA/Ethernet)
  Management	Supports aggregation management network port
  Power Supply	110V/220V AC or 240V HVDC
  Dimensions (H x W x D)	175 mm x 447 mm x 790 mm
