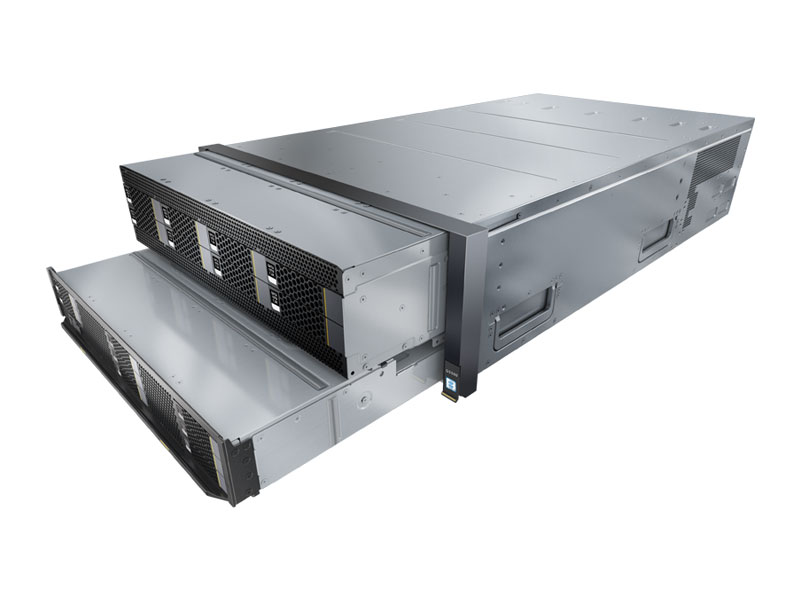

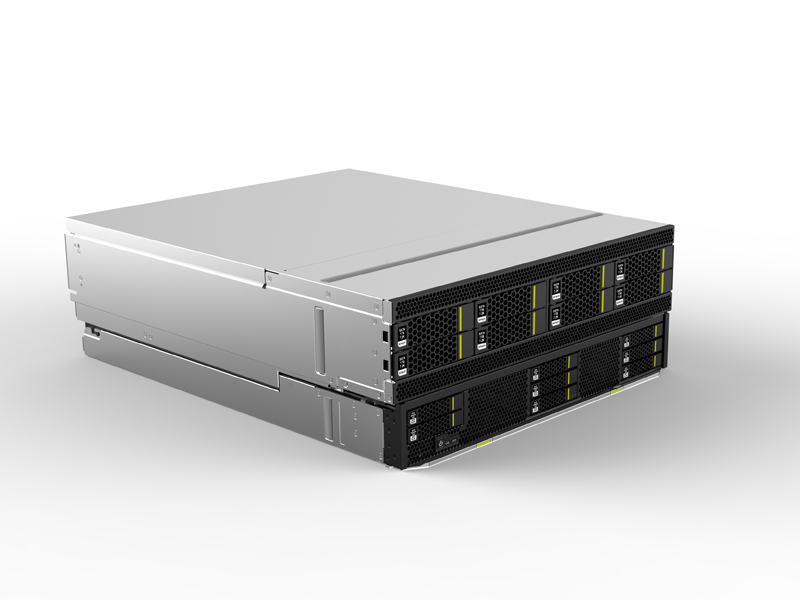

Huawei G560 Full-width Heterogeneous Computing Node

Superb performance, flexible configuration, and fully modular design

Exceptional Heterogeneous Computing Capabilities

• A full-width heterogeneous computing node supports up to 8 FHFL heterogeneous accelerator cards
• Support for GPUDirect RDMA and Peer-to-Peer interconnect technologies, enabling direct memory access for multiple GPU cards

Flexible Topology Configuration

• Support of one-click topology switching and different CPU/GPU configuration ratios for diverse applications

Fully Modular Design

• The design features both a decoupled CPU module and a heterogeneous module, supporting CPU and a heterogeneous unit for long-term evolution
• Power Supply Units (PSUs), hard drives, and fan modules are designed in a fully modular style, supporting hot swap and redundancy backup, and simplifying O&M

• Specifications

  Product	G560
  Form Factor	Full-width heterogeneous computing nodes
  GPU Accelerator Card	Up to 8 NVIDIA® Tesla® P100/P40
  Processors	2 Intel® Xeon® E5-2600 v4 processors
  Memory	Up to 24 DDR4 DIMMs
  Internal Storage	Support 8 x 3.5-inch SAS/SATA HDDs, or 6 x 2.5-inch NVMe SSDs and 2 x 2.5-inch SSDs or SAS/SATA HDDs
  RAID Support	RAID 0, 1, 10, 5, 50, 6, or 60 Provides a supercapacitor to protect data in the case of power failures
  Operating Systems	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, Cent OS, and Ubuntu
  Management	On-board iBMC management module Support management features such as IPMI, SOL, KVM over IP, and virtual media
  Operating Temperature	5°C to 35°C
