Huawei AP4050DN Access Point
-
Model:

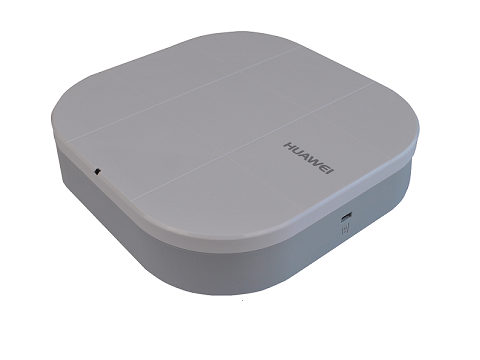

Huawei AP4050DN is a next-generation access point that supports 802.11ac Wave 2, 2 x 2 MIMO, and two spatial streams. The AP complies with 802.11n and 802.11ac protocols and can provide gigabit access for wireless users. In addition, the access point is applicable to commercial chains, medical, warehousing, manufacturing, and logistics environments. -
Detail:
Huawei AP4050DN Access Point -
Price:
$315.00
- Free Technical Support
- Product Quality Protection
- On-time Shipment
- +86 755 8215 3862
- leo@uonel.com
- ywx39894
(1).png)

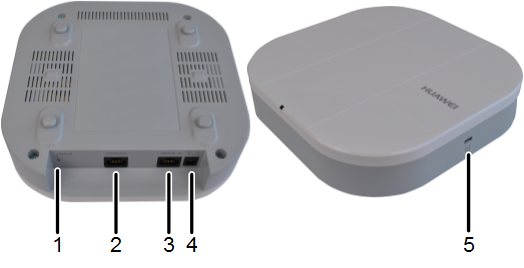

1. Default: Restores factory settings and restarts the device when you hold down the button for more than 3 seconds
2. CONSOLE: Connects to a maintenance terminal for AP configuration and management
3. GE/PoE_IN: 10M/100M/1,000M port that connects to the wired Ethernet and supports PoE input
4. DC 12V: Connects a 12V power adapter to the AP
5. Security slot: Connects to a security lock
LED indicators
Note: The indicator is located inside the panel, which turns on after the AP is powered on.
Indicator colors may vary slightly at different temperatures.
| Type | Color | Status | Description |
|---|---|---|---|
| Default Status After Power-on | Green | Steady on | The AP is just powered on and the software is not started yet. |
| Software Startup Status | Green | Steady on after blinking once | After the system is reset and starts uploading the software, the indicator blinks green once. Until the software is uploaded and started, the indicator remains steady green. |
| Running Status | Green | Blinking once every 2s (0.5 Hz) |
The system is running properly, the Ethernet connection is normal, and STAs are associated with the AP. The system enters the Uboot CLI. |
| Blinking once every 5s (0.2 Hz) | The system is running properly, the Ethernet connection is normal, and no STA is associated with the AP. The system is in low-power consumption state. | ||
| Alarm | Green | Blinking once every 0.25s (4 Hz) |
The software is being upgraded. After the software is uploaded and started, the AP is working in Fit AP mode and requests to go online on the AC and maintains this state until it goes online successfully on the AC (before the CAPWAP link is established). The AP working in Fit AP mode fails to go online on the AC (the CAPWAP link disconnects). |
| Fault | Red | Steady on | A fault that affects services has occurred, such as a DRAM detection failure or system software load failure. The fault cannot be automatically rectified and must be rectified manually |
