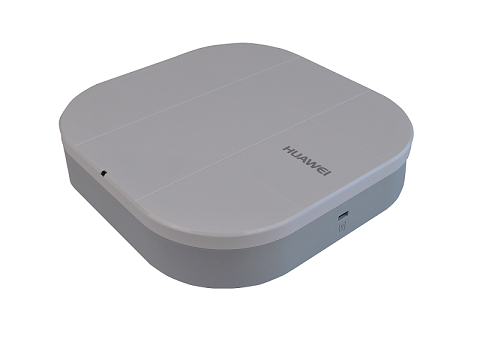

Huawei AP4151DN Access Points
-
Model:
Huawei AP4051DN and AP4151DN are next-generation access points that support 802.11ac Wave 2, 2 x 2 MIMO, and two spatial streams. They comply with 802.11n and 802.11ac protocols and can provide gigabit access for wireless users. The access points are applicable to commercial chains, medical, warehousing, manufacturing, and logistics environments. -
Detail:
Huawei AP4151DN Access Points -
Price:
$325.00
- Free Technical Support
- Product Quality Protection
- On-time Shipment
- +86 755 8215 3862
- leo@uonel.com
- ywx39894

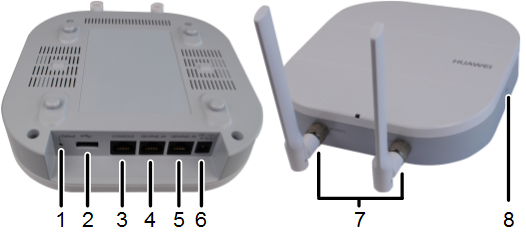

AP4151DN:
1. Default: Restores factory settings and restarts the device when you hold down the button for more than 3 seconds
2. USB: Connects to a USB flash drive or other storage devices to extend the storage space of the AP. The USB 2.0 standard is supported
3. CONSOLE: Connects to a maintenance terminal for AP configuration and management
4. GE1/PoE_IN: 10M/100M/1,000M port that connects to the wired Ethernet and supports PoE input. PoE power supplies on two Ethernet ports are supported
5. GE0/PoE_IN: 10M/100M/1,000M port that connects to the wired Ethernet and supports PoE input. PoE power supplies on two Ethernet ports are supported
6. DC 12V: Connects a 12V power adapter to the AP
7. Antenna port: Connects an antenna to the AP to send and receive wireless signals. The port type is RP-SMA-K
8. Security slot: Connects to a security lock
LED indicators
Notes: The indicator is located inside the panel, which turns on after the AP is powered on. Indicator colors may vary slightly at different temperatures.
| Type | Color | Status | Description |
|---|---|---|---|
| Default Status After Power-on | Green | Steady on | The AP is just powered on and the software is not started yet. |
| Software Startup Status | Green | Steady on after blinking once | After the system is reset and starts uploading the software, the indicator blinks green once. Until the software is uploaded and started, the indicator remains steady green. |
| Running Status | Green | Blinking once every 2 seconds (0.5 Hz) | The system is running properly, the Ethernet connection is normal, and STAs are associated with the AP. The system enters the Uboot CLI. |
| Blinking once every 5 seconds (0.2 Hz) | The system is running properly, the Ethernet connection is normal, and no STA is associated with the AP. The system is in low-power consumption state. | ||
| Alarm | Green | Blinking once every 0.25 seconds (4 Hz) | The software is being upgraded. After the software is loaded and started, the AP requests to go online if it works in Fit AP or cloud-based management mode. The indicator remains in this state before the AP successfully goes online (CAPWAP link setup). The AP works in Fit AP or cloud-based management mode and fails to go online (CAPWAP link disconnection). |
| Fault | Red | Steady on | A fault that affects services has occurred, such as a DRAM detection failure or system software loading failure. The fault cannot be automatically rectified and must be rectified manually. |
