Huawei AP2030DN Access Point
-
Model:

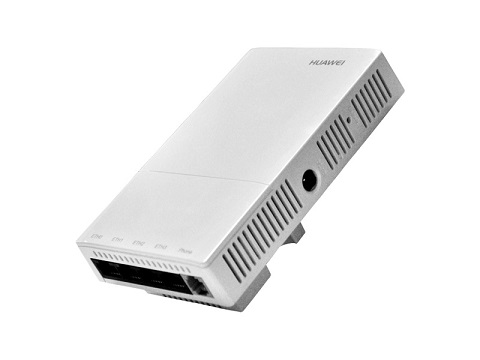

Huawei AP2030DN Wall Plate Access Point -
Detail:
Build a high-performance, reliable wireless network in small environments with ease — ready to plug-and-play -
Price:
$330.00
- Free Technical Support
- Product Quality Protection
- On-time Shipment
- +86 755 8215 3862
- leo@uonel.com
- ywx39894
Share:
Overview
Build a high-performance, reliable wireless network in small environments with ease — ready to plug-and-play

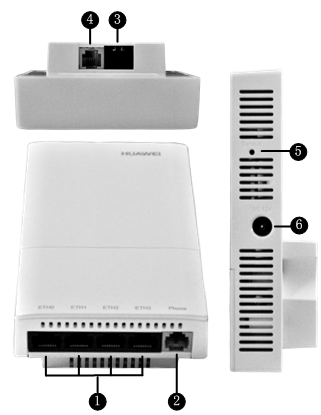

- ETH0 to 3: 10M/100M port connects to the wired Ethernet
- Phone: Phone port used to connect to the phone or ADSL device through phone lines
- GE/PoE: 10M/100M/1,000M port used to connect to the wired Ethernet. The port can also connect to a PoE power supply
- Phone: Phone port connects to the server through phone lines
- Default: Hold down the button more than 3 seconds to reset factory settings
- Power input interface: 12V DC
-
Type Color Status Description Default Status after Power-on Green Steady on AP is just powered on and the software is not started yet Software Startup Status Green Blinks once, then stead on After the system is reset and starts uploading the software, the indicator blinks green once. Remains stead green until the software is uploaded and started Running Status Green Blinks once every 2 seconds (0.5 Hz) - System is operating properly, the Ethernet connection is normal, and STAs are associated with the AP
- The system enters the Uboot CLI
Blinks once every 5 seconds (0.2 Hz) The system is running properly, the Ethernet connection is normal, and no STA is associated with the AP. The system is in low power consumption state. Alarm Green Blinks once every 0.25 seconds (4 Hz) - Software is being uploaded
- After the software is uploaded and started, the AP, working in Fit AP mode, requests to go online from the AC and maintains this state until it goes online successfully before the CAPWAP link is established
- The AP working in Fit AP mode fails to go online on the AC (the CAPWAP link disconnects)
Fault Red Steady on A fault that affects services, such as a DRAM detection failure or system software loading failure has occurred. The fault must be fixed manually because it cannot be fixed automatically
