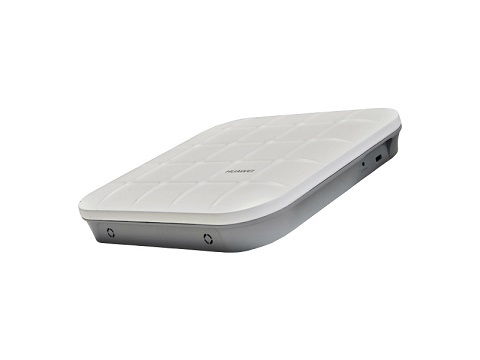

Huawei AP4030DN Access Points

Detail:
Deploy cost-effective AP4030DN and AP4130DN APs to enable wireless services for airports, sports stadiums, cafés, and entertainment centers

Buy Now Inquire Now

Overview

Deploy cost-effective AP4030DN and AP4130DN APs to enable wireless services for airports, sports stadiums, cafés, and entertainment centers

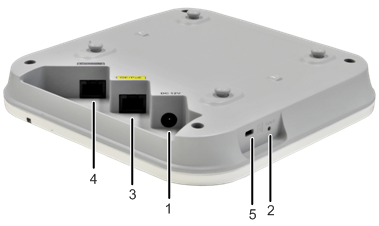

1. Input port: 12V DC power supply

2. Default button: Hold button for more than 3 seconds to restore factory defaults

3. GE/PoE port: 10M/100M/1,000M port connects to wired Ethernet. The port can connect to a PoE power supply to provide power for APs

4. Console port: Connects to the maintenance terminal for AP configuration and management

5. Lock port: Protects against theft

Type	Color	Status	Description
Power-on (default)	Green	Steady on	The AP is on, but the software has not started
Software Startup	Green	Steady on after one blink	After the system resets and starts uploading software, the indicator blinks green once. It remains steady green until the software is uploaded and started
Running	Green	Blinks once every 2 seconds (0.5 Hz)	The system is running properly, the Ethernet connection is normal, and STAs are associated with the AP The system enters the Uboot CLI
Running	Green	Blinks once every 5 seconds (0.2 Hz)	The system is running properly, the Ethernet connection is normal, and no STA is associated with the AP. The system is in a low-power consumption state
Alarm	Green	Blinks once every 0.25 seconds (4 Hz)	The software is being upgraded After the software is upgraded and starts, the AP, working in Fit AP mode, requests to go online on the AC and maintains this state until successful (before the CAPWAP link is established) If the AP, working in Fit AP mode, fails to go online the CAPWAP link disconnects
Fault	Red	Steady on	A fault has occurred, such as a DRAM detection failure or system software loading failure. The fault cannot be automatically rectified and must be rectified manually
