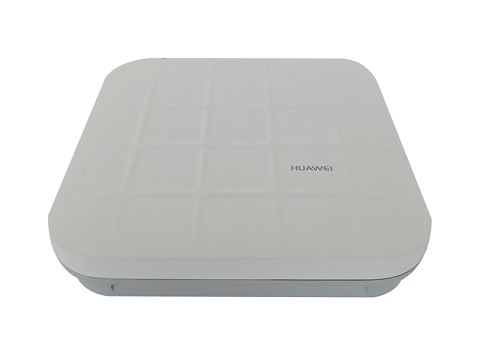

Huawei AP4030TN Access Point

Detail:
Huawei AP4030TN is a wireless access point in compliance with 802.11ac standards

Buy Now Inquire Now

Overview

Huawei AP4030TN is a wireless access point in compliance with 802.11ac standards

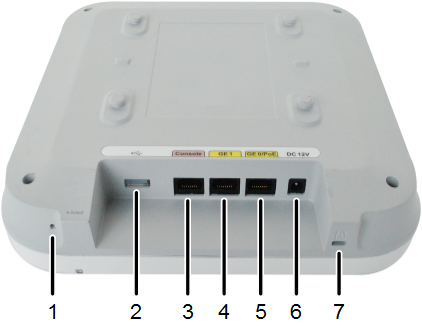

1. Default button: Restores factory settings and restarts the device if you hold down the button for more than 3 seconds

2. USB port: Connects to a USB flash drive to extend the storage space of the AP, and provides a maximum 2.5W of power

3. Console port: Connects to a maintenance terminal for AP configuration and management

4. GE1: 10M/100M/1,000M port used to connect to the wired Ethernet

5. GE0/PoE: 10M/100M/1,000M port used to connect to the wired Ethernet. The port can connect to a PoE power supply to provide power for APs

6. Input port for 12V DC power supply

7. Security lock slot: Protects the AP against theft

LED Indicators

Note: Indicator colors may vary slightly at different temperature

Type	Color	Status	Description
Default Status after Power-on	Green	Steady on	The AP is just powered on and the software is not started yet
Software Startup Status	Green	Steady on after blinking once	After the system is reset and starts uploading the software, the indicator blinks green once. Until the software is uploaded and started, the indicator remains steady green
Running Status	Green	Blinking once every 2 seconds (0.5 Hz)	The system is running properly, the Ethernet connection is normal, and STAs are associated with the AP The system enters the Uboot CLI
Running Status	Green	Blinking once every 5 seconds (0.2 Hz)	The system is running properly, the Ethernet connection is normal, and no STA is associated with the AP. The system is in low power consumption state
Alarm	Green	Blinking once every 0.25 seconds (4 Hz)	The software is being upgraded After the software is uploaded and started, the AP working in Fit AP mode requests to go online on the AC and maintains this state until it goes online successfully on the AC (before the CAPWAP link is established) The AP working in Fit AP mode fails to go online on the AC (the CAPWAP link disconnects)
Fault	Red	Steady on	A fault that affects services has occurred, such as a DRAM detection failure or system software loading failure. The fault cannot be automatically rectified and must be rectified manually
