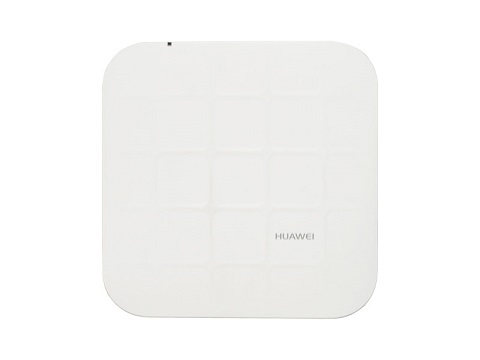

Huawei AP5030DN Access Points

Model:
Huawei AP5030DN Access Points

Detail:
Connect with Huawei 802.11ac APs for demanding Wi-Fi services today and tomorrow.

Price:

$360.00

Buy Now Inquire Now

Free Technical Support
Product Quality Protection
On-time Shipment

+86 755 8215 3862
leo@uonel.com
ywx39894

Product Overview Reviews

Overview

Connect with Huawei 802.11ac APs for demanding Wi-Fi services today and tomorrow.

1. Console interface

2. GE1: 10M/100M/1,000M interface, connects to the wired Ethernet

3. GE0/PoE: 10M/100M/1,000M interface, connects to the wired Ethernet and supports PoE power supply

4. Power input interface: 12V DC

5. Security slot: Connects to a security lock and protects the AP against theft

6. Default button: Restores factory settings if you hold down the button more than three seconds

Information type	Color	Status	Description
Default Status after Power-on	Green	Steady on	AP is powered on and the software is not started yet
Software Startup Status	Green	Steady on after blinking once	After the system is reset and starts uploading the software, the indicator blinks green once. Until the software is uploaded and started, the indicator remains steady green
Running Status	Green	Blinking once every 2 seconds (0.5 Hz)	The system is running properly, the Ethernet connection is normal, and STAs are associated with the AP The system enters the Uboot CLI
Running Status	Green	Blinking once every 5 seconds (0.2 Hz)	The system is running properly, the Ethernet connection is normal, and no STA is associated with the AP. The system is in low power consumption state (no data is being transmitted and the EEE function takes effect)
Alarm	Green	Blinking once every 0.25 seconds (4 Hz)	The software is being upgraded After the software is uploaded and started, the AP, working in Fit AP mode, enters the registration state and has not registered successfully with the AC yet The AP registration fails (CAPWAP link is disconnected)
Fault	Red	Steady on	A fault that affects services has occurred. The fault cannot be automatically rectified and must be rectified manually (the fault can be a DRAM detection failure or system software loading failure)
Fault	Red	Blinking once every 0.25 seconds (4 Hz)	A fault that affects services has occurred. The fault cannot be automatically rectified and must be rectified manually (the fault can be an Ethernet interface error, such as a PHYerror or a radio interface detection failure caused by a PCI-e interface error or a baseband chip error)
