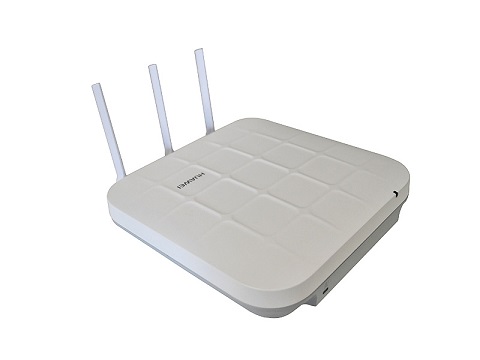

Huawei AP5130DN Access Points
-
Model:
Huawei AP5130DN Access Points -
Detail:
Huawei AP5030DN and AP5130DN performance-enhanced 802.11ac APs deliver high-capacity, secure WLAN access services for dense, wide-area user environments such as offices, airports, trains, and sports stadiums. -
Price:
$360.00
- Free Technical Support
- Product Quality Protection
- On-time Shipment
- +86 755 8215 3862
- leo@uonel.com
- ywx39894
Share:
Overview
Huawei AP5030DN and AP5130DN performance-enhanced 802.11ac APs deliver high-capacity, secure WLAN access services for dense, wide-area user environments such as offices, airports, trains, and sports stadiums.
Specifications
|
Specifications
|
AP5030DN
|
AP5130DN
|
|
Dimensions (H x W x D)
|
220 mm x 220 mm x 53 mm
|
220 mm x 220 mm x 53 mm
|
|
Power Input
|
12V DC ±10%
PoE: –48V DC (in compliance with IEEE 802.3af/at)
|
12V DC ±10%
PoE: –48V DC (in compliance with IEEE 802.3af/at)
|
|
Maximum Power Consumption
|
12.95W
|
12.95W
|
|
Operating Temperature
|
–10°C to 50°C
|
–10°C to 50°C
|
|
Antenna Type/Antenna Gain
|
Built-in antenna/2.4 GHz: 4 dBi, 5 GHz: 5 dBi
|
Removable RP-SMA antenna/2.4 GHz: 3.5 dBi, 5 GHz: 4 dBi
|
|
Maximum Number of Users
|
≤ 256
|
≤ 256
|
|
Maximum Transmit Power
|
25 dBm (combined power)
|
25 dBm (combined power)
|
|
MIMO: Spatial Streams
|
3 x 3:3
|
3 x 3:3
|
|
Radio Protocol
|
802.11a/b/g/n/ac
|
802.11a/b/g/n/ac
|
|
Maximum Speed
|
1.75 Gbit/s
|
1.75 Gbit/s
|
