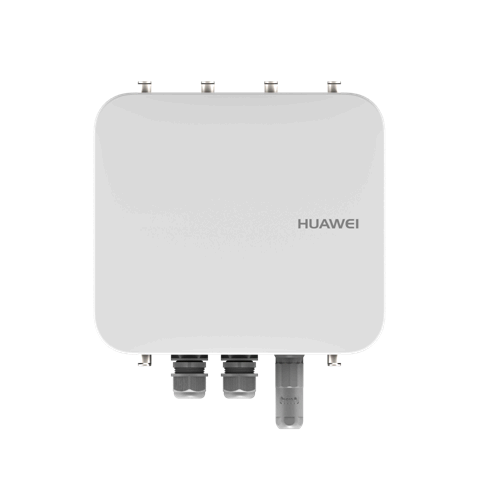

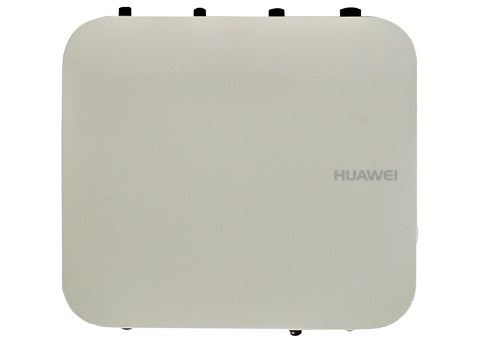

Huawei AP8130DN-W Outdoor Access Point
-
Model:
Huawei AP8130DN-W Outdoor Access Point -
Detail:
Huawei AP8130DN-W is the latest-generation 802.11ac outdoor Access Point (AP) for use in large coverage scenarios (high-density stadiums, squares, pedestrian streets, and amusement parks) and bridging scenarios (wireless harbors, data backhaul, video surveillance, and train-to-ground backhaul). It features 3 x 3 MIMO and three spatial streams. -
Price:
$420.00
- Free Technical Support
- Product Quality Protection
- On-time Shipment
- +86 755 8215 3862
- leo@uonel.com
- ywx39894

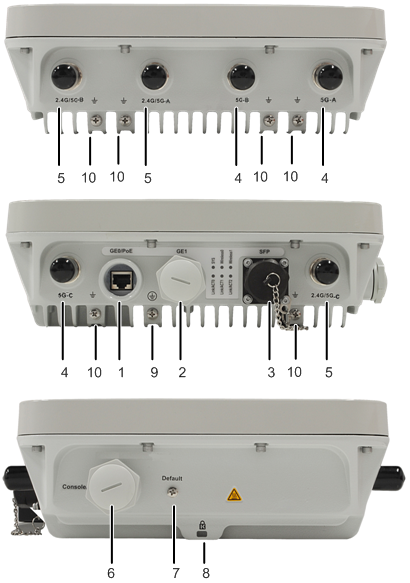

1. GE0/PoE interface: A 10/100/1,000M interface, which connects to the wired Ethernet and supports the PoE power supply.
2. GE1 interface: A 10/100/1,000M interface, which connects to the wired Ethernet.
3. SFP: An optical interface.
4. 4.9/5 GHz antenna interface.
5. 2.4 GHz or 4.9/5 GHz antenna interface.
6. Console interface.
7. Default button: Restores the factory settings if you remove the screw and hold down the button more than 3 seconds from the hole.
8. Security slot: Connects to a security lock.
9. Device ground screw: Connects a ground cable to the AP.
10. Ground screw for the surge protective device: Connects the AP to the ground point of an external surge protective device.
LED Indicators
Note: Indicator colors may vary slightly at different temperature.
Descriptions of the SYS indicator
| Type | Color | Status | Description |
|---|---|---|---|
| Default Status after Power-on | Green | Steady on | The AP is just powered on and the software is not started yet. |
| Software Startup Status | Green | Steady on after blinking once | After the system is reset and starts uploading the software, the indicator blinks green once. Until the software is uploaded and started, the indicator remains steady green. |
| Running Status | Green | Blinking once every 2 seconds (0.5 Hz) |
|
| Blinking once every 5 seconds (0.2 Hz) | The system is running properly, the Ethernet connection is normal, and no STA is associated with the AP. The system is in low power consumption state. | ||
| Alarm | Green | Blinking once every 0.25 seconds (4 Hz) |
|
| Fault | Red | Steady on | A fault that affects services has occurred, such as a DRAM detection failure or system software loading failure. The fault cannot be automatically rectified and must be rectified manually. |
