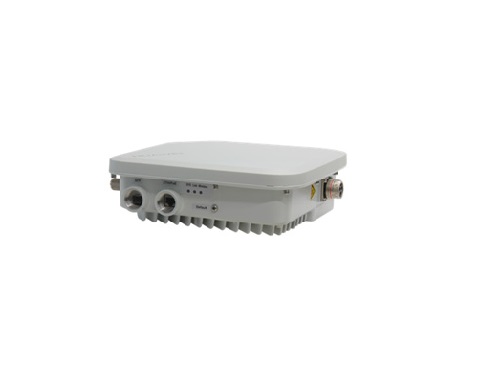

Huawei AP6610DN-AGN Access Points

  • Model:

    Huawei AP6610DN-AGN Access Points
  • Detail:

    High-speed, reliable wireless access services at 600 Mbit/s (2.4 GHz and 5 GHz radios); 2 x 2 MIMO; 802.11a/b/g/n compatibility
  • Price:

    $520.00

  • Condition:

    Brand New Sealed
  • Availability:

    IN STOCK

  • Quantity:

  • Free Technical Support
  • Product Quality Protection
  • On-time Shipment
Overview
High-speed, reliable wireless access services at 600 Mbit/s (2.4 GHz and 5 GHz radios); 2 x 2 MIMO; 802.11a/b/g/n compatibility

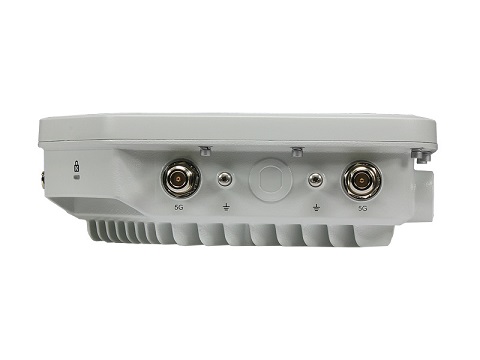

1. SFP: Optical port

2. ETH: 10M/100M/1,000M port that connects to the Ethernet

3. Default button: Restores the factory settings if you remove the screw and hold down the button inside the hole for more than 3 seconds

4. Power input interface

5. Ground port: Connects to a ground cable

6. 2.4 GHz antenna port

7. 5 GHz antenna port

Specifications
Specifications
AP6510DN-AGN
AP6610DN-AGN
Dimensions (H x W x D)
255 mm x 255 mm x 83 mm
255 mm x 255 mm x 83 mm
Power Input
PoE: in compliance with IEEE 802.3at
AC: 90V to 264V
Maximum Power Consumption
25.5W
30W
Operating Temperature
−40°C to 60°C
−40°C to 60°C
Antenna Type
Dual-polarization antenna or common outdoor antenna
Dual-polarization antenna or common outdoor antenna
Maximum Number of Users
≤ 256
≤ 256
Maximum Transmit Power
29 dBm (combined power)
30 dBm (combined power)
MIMO: Spatial Streams
2 x 2:2
2 x 2:2
Radio Protocols
802.11a/b/g/n
802.11a/b/g/n
Highest Rate
600 Mbit/s
600 Mbit/s
