ES0B017712P0
-
Model:
ES0B017712P0 Huawei S7700 Series switch -
Detail:
S7712 POE Assembly Chassis -
Price:
$3100.00
- Free Technical Support
- Product Quality Protection
- On-time Shipment
- +86 755 8215 3862
- leo@uonel.com
- ywx39894
Overview (ES0B017712P0)

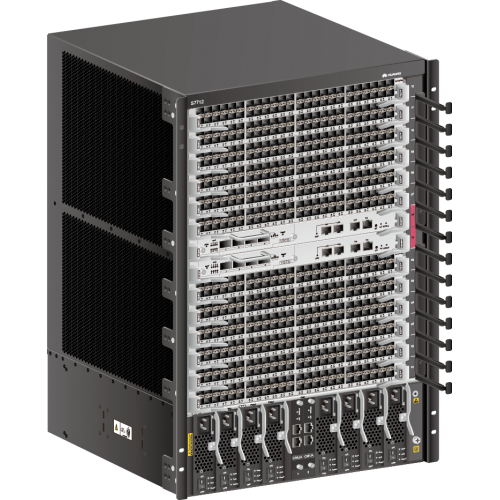

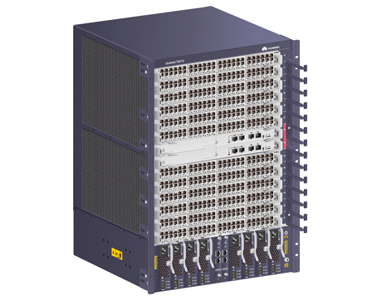

ES0B017712P0 is the Huawei S7712 POE Assembly Chassis. The S7700 series switches (S7700 for short) are high-end smart routing switches designed for next-generation enterprise networks. The S7700 design is based on Huawei’s intelligent multi-layer switching technology to provide intelligent service optimization methods, such as MPLS VPN, traffic analysis, comprehensive HQoS policies, controllable multicast, load balancing, and security, in addition to high-performance Layer 2 to Layer 4 switching services. The S7700 also features super scalability and reliability.
|
Product Code |
ES0B017712P0 |
|
Forwarding Performance |
2,880 Mpps |
|
Switching Capacity |
3.84 Tbit/s |
|
Service Slots |
12 |
|
Redundancy Design |
Supervisors, Power modules, CMUs, Fans trays |
|
MPU Slots |
2 |
|
LPU slots |
12 |
|
System power supply slots |
4 |
|
Fan slots |
4 |
|
PoE power supply slots |
4 |
|
Maximum PoE Power |
8,800W |
|
Maximum power consumption (fully loaded) |
4200 W |
|
Working Voltage |
DC: –38.4V to –72V AC: 90V to 290V |
|
Dimensions (W x D x H, excluding rack-mounting brackets) |
With cable management frames: 442 mm x 585 mm x 663.95 mm (17.4 in. x 23.0 in. x 26.1 in. (15 U)) Without cable management frames: 442 mm x 489 mm x 663.95 mm (17.4 in. x 19.3 in. x 26.1 in. (15 U)) |
|
Weight (empty/fully loaded) |
25 kg/70 kg (55.1 lb/154.3 lb) |
