ME0P08BASA30
-
Model:
Huawei ME60 Series Multi-Service Control Gateways ME0P08BASA30 -
Detail:
ME60-X8 Basic Configuration (Including ME60-X8 Chassis,2+1 Redundant SRU/SFU,2 PFUs,4 AC Power,without Software Charge and Document) -
Price:
$16000.00
- Free Technical Support
- Product Quality Protection
- On-time Shipment
- +86 755 8215 3862
- leo@uonel.com
- ywx39894
Overview (ME0P08BASA30)
Huawei ME60 Series Multi-Service Control Gateways ME0P08BASA30 is perfect as service point of presence (SPOP) of IP/MPLS network, BRAS node of broadband service access, or core node of campus network, by delivering industry-leading performance, monetization capabilities and excellent service evolution to boost customers' service development.
As the service management and offering platform with high performance, the ME60 meet various requirement for service operation mechanisms. ME60 ensure smooth and reliable running of various services. Based on the solutions with ME60, customers are able to construct a future-oriented and intelligent broadband IP network, which can greatly reduces the total cost of ownership of the network. The ME60-X8 Basic Configuration includes ME60-X8 Chassis,2+1 Redundant SRU/SFU,2 PFUs,4 AC Power, without Software Charge and Document.
Quick Specs

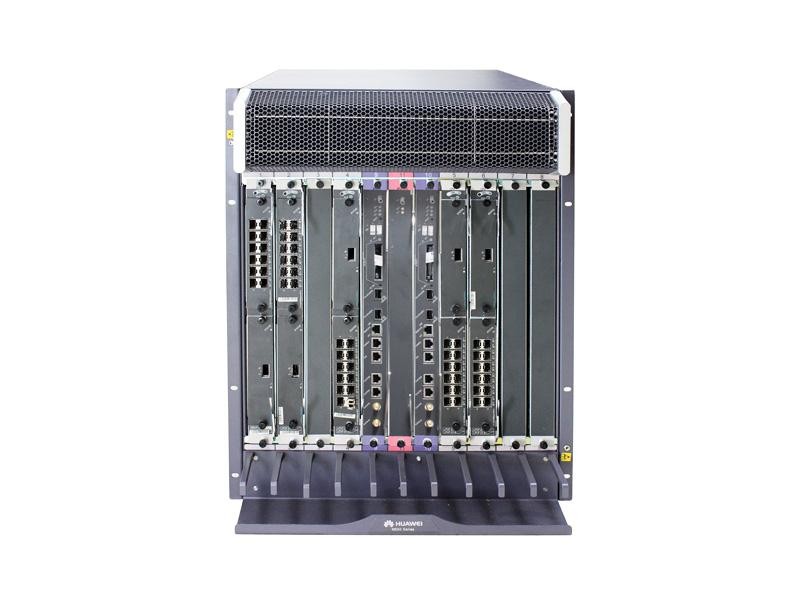

Figure 1 shows the appearance of Huawei Router - ME0P08BASA30.
Table 1 shows the Quick Specs.
|
Product Code |
Huawei Router - ME0P08BASA30 |
|
Switching Capacity |
12.58 Tbit/s |
|
Slots |
11 slots, including 2 SRUs (1:1 backup), 1 SFUs (2+1 backup), and 8 LPUs |
|
Maximum Power Consumption |
2,340W (120G) |
|
Weight |
136 kg (240G) |
|
Dimensions (W x D x H) |
442 mm x 650 mm x 620 mm (14U) |
Product Details
Figure 2 shows the front panel of Huawei Router - ME0P08BASA30.
Figure 3 shows the back panel of Huawei Router - ME0P08BASA30.
Compare to Similar Items
Table 3 shows the comparison between ME0P08BASA30 and ME0P03BASA31.
|
Model |
ME0P08BASA30 |
|
|
Switching Capacity |
12.58 Tbit/s |
1.08 Tbit/s |
|
Slots |
11 slots, including 2 SRUs (1:1 backup), 1 SFUs (2+1 backup), and 8 LPUs |
5 slots, including 2 MPUs (1:1 backup) and 3 LPUs |
|
Maximum Power Consumption |
2,340W (120G) |
1,070W (AC) |
|
Weight |
136 kg (240G) |
52 kg (AC) |
|
Dimensions (W x D x H) |
442 mm x 650 mm x 620 mm (14U) |
442 mm x 650 mm x 220 mm (AC 5U) |
