CR5P08BASD70

The NE40E series universal service router CR5P08BASD70, a high-end network product, features line-rate forwarding capability, a well designed Quality of Service (QoS) mechanism, strong service-processing capability, and excellent expansibility and are usually deployed at the edges of Internet Protocol (IP) backbone networks, IP Metropolitan Area Networks (MANs), Internet Data Centers (IDCs) networks and other large-scale IP networks. It can also provide comprehensive services for enterprises, residential as universal edge device. The Huawei CR5P08BASD70 NE40E-X8 basic configuration includes the features:

1) NE40E-X8 Chassis, 2+1 Redundant SRU/SFU, 4 DC Power supplies, 2 MPU slots, 1 SFU slots, 8 LPU slots, Huawei VRP platform

2) Up to 7.08Tbit/s switching capacity, 2880Mpps forwarding performance

3) 1+1 backup for SRUs, 2+1 backup for SFUs

4) Extremely Large Capacity Line Card, Energy Saving Design, IPv6-Compatible Solutions, Enhanced Metro Ethernet Features, Enhanced User Management Functions

5) Interface type: 100GE/40GE, 10G-LAN/WAN, GE/FE OC-192c/STM-64c POS, OC-48c/STM-16c POS, OC-12c/STM-4c POS, OC-3c/STM-1c POS, Channelized STM-4, Channelized OC-3/STM-1, OC-3c/STM-1c ATM, OC-12c/STM-4c ATM, E3/CT3 CE1/CT1 E1/T1

6) IPv4/IPv6, MPLS, QoS, Multicast, Security, VPNs, Value-added services

Quick Specs

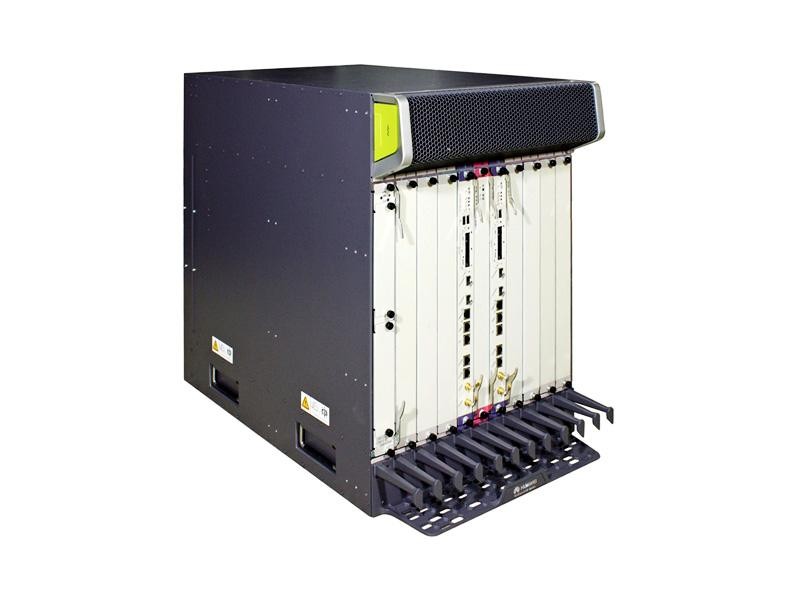

Figure 1 shows the appearance of Huawei Router - CR5P08BASD70.

Table 1 shows the Quick Specs.

Product Details

Figure 2 shows the front panel of Huawei Router - CR5P08BASD70.

Figure 3 shows the back panel of Huawei Router - CR5P08BASD70.
