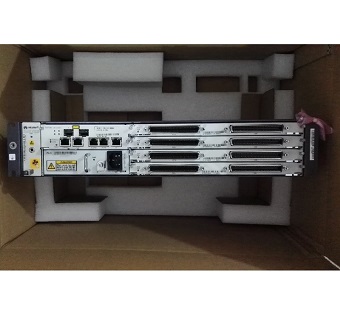

Huawei SmartAX MA5616

 In the MA5616 chassis, slot 0 houses the control board, slots 1-4 service boards, and slot 5 power board.

MA5616s support H831MABA and H831MABB backplanes. If an MA5616 is required to support vectoring, configure an H831MABB backplane for it.

Huawei MA5616 Remote Optical Access Equipment
Cabinet
H82BZ1MABB01 Multi-service Access Equipment Host Assembly Components Cabinet
Main Control Board and Interface Board
H83D00CCUC01 Centralized Control Unit Board
H83D00UP2A01 UP2A/UP2C daughter board
Service Board
H83D05ADPE01 64-Channel ADSL2+ Board(Low Power Consumption,With Splitter)
Power
H83D01PDIA01 DC Power Input Unit
SFP
SFP-1310nm-1000Base-Sx SM Optical Transceiver,SFP,1310nm,2.125Gb/s(Multi rate) ,-9.5~-2.5dBm,-17dBm,LC,SM,10km
Installation Material
External Cable Suite,MA5616,Subscriber Cable
Subscriber Cable,32-Port ADSL&G.SHDSL&VDSL,15m,0.4mm,64 Cores, D64M,CC32P0.4P430U-I
External Cable Suite,MA5616,Power Cable
CP-480101 Wire,450/750V,60227 IEC 02(RV)4mm^2,Blue,34A(per meter)
CPGND0101 Wire,450V/750V,60227 IEC 02(RV)4mm^2,Black(per meter)
CPGND0102 Wire,450/750V,60227 IEC 02(RV)4mm^2,Yellow/Green,70degC(per meter)

H82BZ1MABA01 Multi-service Access Equipment Host Assembly Components
Main Control Board and Interface Board
H83D00CCUB01 Centralized Control Unit Board
H83D00GP1A01 GPON Interface Card
Service Board H83D05ADLE01 32-Channel ADSL2+ Board(Low Power Consumption,With Splitter)
Power H83D01PDIA01 DC Power Input Unit
SFP eSFP-1310nm-1000Base-Lx SM Optical transceiver,eSFP,1310nm,1.25Gb/s,-9~-3dBm,-20dBm,LC,Single Mode,10km
Installation Material(Extra charge shall be paid for exceeded length of cables based on actual site information)
MXU,Fiber Cable SS-OP-FC-SC-S-5 Patch cord-FC/PC-SC/PC-Single mode-G.652D-3mm-5m-PVC-Yellow
External Cable Suite,MA5616,Subscriber Cable
CADSL3269 Subscriber Cable,32 Channel ADSL,5m,0.4mm,64 Cores,D64AM-II,CC32P0.4P430U-I
CSAD32011 Subscriber Cable,32-Channel ADSL,0.4mm,64 Cores,per meter
External Cable Suite,MA5616,Power Cable
CP-480101 Wire,450/750V,60227 IEC 02(RV)4mm^2,Blue,34A(per meter)
CPGND0101 Wire,450V/750V,60227 IEC 02(RV)4mm^2,Black(per meter)
Software Basic Software
NS1S000LIC01 ADSL Port License for NE Management,based on per ADSL Port
