ZTE ZXR10 5960-32DL 5960-64DL 5960-52TM All 10Gigabit Switch
-
Model:
ZTE ZXR10 5960-32DL 5960-64DL 5960-52TM All 10Gigabit Switch -
Detail:
ZTE ZXR10 5960-32DL 5960-64DL 5960-52TM Switch -
Price:
$1500.00
- Free Technical Support
- Product Quality Protection
- On-time Shipment
- +86 755 8215 3862
- leo@uonel.com
- ywx39894
Share:
Overview

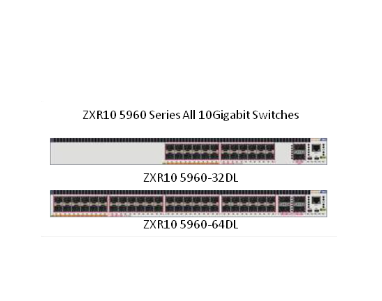

ZTE ZXR10 5960-32DL 5960-64DL 5960-52TM Switch
The ZXR10 5960 Series switch offers the following switch products:
5960-32DL: 24 10GE SFP+ optical ports and 2 40GE QSFP+ optical ports, 2 fan module, 2 AC/DC/HVDC power supply modules, front-to-back airflow.
5960-64DL: 48 10GE SFP+ optical ports and 4 40GE QSFP+ optical ports, 2 fan module, 2 AC/DC/HVDC power supply modules, front-to-back airflow.
5960-52TM：48 Ethernet 10/100/1000M RJ45 electrical ports and one expansion slot, 2 fan modules, 2 AC/DC/HVDC power supply modules, front-to-back airflow.
The expansion card slot can be equipped with the following expansion cards:
4 * 10GE SFP+ optical ports card
4 * GE SFP optical ports card
4 * GE RJ45 electrical ports card
5960 List:
RS-5960-64DL-OUT
RS-5960-64DL-IN
RS-5960-32DL-OUT
RS-5960-32DL-IN
RS-5960-PWR-DC100-OUT
RS-5960-PWR-DC100-IN
RS-5960-PWR-AC50-OUT
RS-5960-PWR-AC50-IN
QSFP-Cable-5m
QSFP-Cable-3m
QSFP-Cable-10m
QSFP/4*SFP+ -Cable-3m
SS-QSFP-20m
SS-QSFP-100m
|
Parameters
|
5960-64DL
|
5960-32DL
|
5960-52TM
|
|
Height
|
1RU
|
1RU
|
1RU
|
|
Dimensions
|
43.6mm*442mm*440mm (H*W*D)
|
||
|
Fixed Ports
|
48*10GE SFP+ ports and 4*40GE QSFP+ ports
|
24*10GE SFP+ ports and 2*40GE QSFP+ ports
|
48 GE RJ45 ports
|
|
Expansion Card Slot
|
-
|
-
|
1
|
|
Expansion Card Type
|
-
|
-
|
4*1GE SFP card
4*1GE RJ45 card 4*10GE SFP+ card |
|
Weight
|
<9.0kg
|
<9.0kg
|
<9.0kg
|
|
Management Port
|
1 RJ45 Console, 1 Mini USB Console, 1 GE Combo MNG, 1 USB
|
||
|
DC Power Supply
|
-38V ~ -72V
|
||
|
HVDC Power Supply
|
240V/336V
|
||
|
AC Power Supply
|
Rated voltages: 100V~240V,50Hz~60Hz;
Maximum voltages: 90V~286V,45Hz~66Hz
|
||
|
Max Power Consumption
|
<310W
|
<220W
|
<87W
|
|
Typical Power Consumption
|
191W
|
150W
|
67W
|
|
Power Redundancy Pattern
|
Two independent and swappable power supply module,
support AC 1+1, DC 1+1, mixed AC DC 1+1
|
||
|
Heat Dissipation Pattern
|
Forced air cooling (Front-to-Rear flow )
|
||
|
Heat Dissipation
|
<534 BTU/h
|
<420 BTU/h
|
<187 BTU/h
|
|
Working Temperature
|
Long term working temperature: -5 oC ~ +50 oC
Short term working temperature: -10 oC ~ +50 oC
|
||
|
Humidity
|
10%~90%
|
||
|
Working Altitude
|
<5000 meters
|
||
|
MTBF/MTTR
|
>300000 hours/ < 30 minutes
|
||
|
Switching Capacity
|
1.28Tbps
|
640Gbps
|
176Gbps
|
|
Packet Forwarding Rate
|
960Mpps
|
480Mpps
|
132Mpps
|
|
Function
|
The ZXR10 5960 Series Switch
|
|
Data Center Features
|
Support VSC2.0 (Virtual Switching Clustering)
Support TRILL (Transparent Interconnection of Lots of Links)
Support DCB (Data Center Bridging)
Support PFC (Priority-based Flow Control)
Support ETS (Enhanced Transmission Selection)
Support VEPA (IEEE 802.3Qbg)
Support Multi Channel
|
|
L2 Features
|
Support IEEE 802.1p (COS), IEEE 802.1q (VLAN), IEEE 802.3x
Support IEEE 802.1d (STP)/ 802.1w (RSTP)/ 802.1s (MSTP)
Support IEEE 802.3ad (LACP)
Support IEEE 802.3z (1000Base-X) / 802.3ab (1000BaseT)
Support IEEE 802.3an (10GBase-T), IEEE 802.3ae (10Gbase)
Support IEEE 802.3ba (40Gbase), IEEE 802.3ba (100Gbase)
Support Port mirroring, Traffic mirroring
Support VLAN switching, VLAN translation
Support PVLAN, SuperVLAN
Support GVRP
Support LLDP
|
|
IPv4 Features
|
Support IPv4 routing protocols, such as static routing, policy based routing , RIP, OSPF, BGP, and IS-IS
Support DHCP server/ relay/proxy, DHCP snooping
|
|
IPv6 Features
|
Support IPv6 dynamic routing protocols, such as Static routing, Policy based routing , RIPng, OSPFv3, ISISv6, and BGP4+
Support ND, DHCPv6, PMTU
Support manual IPv6 tunnel, 6to4 tunnel, 6PE, ISATAP tunnel
|
|
Multicast
|
Support IGMP v1/v2/v3, IGMPv1/v2/v3 snooping
Support PIM-SM, PIM-DM, PIM-SSM, Bi-direction PIM, MSDP, MBGP, Any-RP
Support MLD V1/V2, MLD V1/V2 Snooping
Support PIMv6
|
|
QOS
|
Support traffic classification based on Layer 2 headers, Layer 3 protocols, Layer 4 protocols, and 802.1p priority
Support 8 hardware-based queues per port
Support queue scheduling algorithms, such as SP, WRR, DWRR, SP+WRR
Support congestion avoidance mechanisms, such as WRED and tail drop
Support policing/shaping based on port/flow
|
|
Security
|
Support L2-L4 ACL
Support standard ACL,MAC ACL, L2 ACL, extended ACL, mixed ACL, VLAN ACL
Support time-range ACL configuration, bidirectional ACL
Support 802.1x authentication and 802.1x server, support portal
Support MAC authentication
Support AAA/ RADIUS and TACACS+ authentication for login users
Support SSH v1.0/v2.0 server
Support CPU anti-attack, CPU overload protection
Support STP Root Guard, BPDU guard
Support URPF
Support RIP/OSPF/BGP MD5 encryption checking
|
|
Equipment Management
|
Support CLI, Telnet, SSH, Local and remote (Radius/Tacacs+) authentication of user
Support SNMP v1/v2/v3
Support NetNumen U31
Support Mirroring, RSPAN, ERSPAN
Support EasyManager zero deployment and batch inspection tool
Support RMON
Support NTP
Support Syslog, Sflow
Support Hotfix
|
|
Reliability
|
Support 1+1 redundancy power supply/ fan module
Support Hot plugging
Support LACP
Support ZESR/ZESR+(ZTE Ethernet Switch Ring)
Support VRRP,VRRPv3,VRRPE
Support NSF/GR for OSFP/BGP/IS-IS
Support BFD for VRRP/ BGP/ IS-IS/ OSPF
Support Ethernet OAM (802.1ag and 802.3ah)
|
|
Enhanced Features
|
Support M-BUTTON
Support Zero-touch deployment
|
