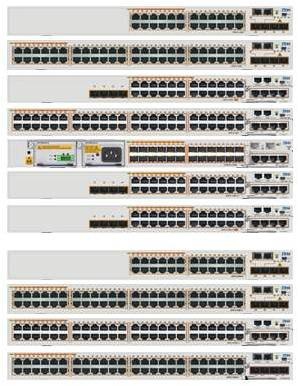

ZTE ZXR10 5250-28TC, 5250-52TC, 5250-28SM, 5250-28PM, 5250-52PM, 5250-28TC-H, 5250-52TC-H, 5250-28TM-H, 5250-52TM-H, 525

 The interface combinations of these switches are listed below:

• 5250-52PM: 48*GE RJ45 (POE/POE+) + 1*expansion card slot (4*GE RJ45/4*GE SFP /4*10GE SFP+ available)
• 5250-28TC-H: 24*GE RJ45 + 2*GE SFP + 2*GE Combo
• 5250-52TC-H: 48*GE RJ45 + 2*GE SFP + 2*GE Combo
• 5250-28TM-H: 20 GE RJ45 + 4 GE Combo + 1*expansion card slot (4*GE RJ45/4*GE SFP /4*10GE SFP+ available)
• 5250-52TM-H: 48 GE RJ45 + 1*expansion card slot (4*GE RJ45/4*GE SFP /4*10GE SFP+ available)
• 5250-28PM-H: 20 GE RJ45 (POE/POE+) + 4 GE Combo ports (electrical ports support POE) + 1*expansion card slot (4*GE RJ45/4*GE SFP /4*10GE SFP+ available)
• 5250-52PM-H: 48*GE RJ45 (POE/POE+) + 1*expansion card slot (4*GE RJ45/4*GE SFP /4*10GE SFP+ available)

• 5250 List:

  RS-5250-24T-AC
  RS-5250-52TM-AC
  RS-SWPB-180W3-AC
  RS-5000-1*10GE-XFP
  RS-5000-1*10GE-CX4
  RS-CAB-XGE-CX4
  RS-5250-28TC-AC
  RS-5250-28TC-DC
  RS-5250-52TC-AC
  RS-5250-52TC-DC
  RS-5250-28TC-H-AC
  RS-5250-28TC-H-DC
  RS-5250-52TC-H-AC
  RS-5250-52TC-H-DC
  5250-28SM
  52-PWR-AC10
  52-PWR-DC10
  RS-5250-52PM
  RS-5250-52PM-H
  RS-52-PWR-AC50
  52-4GE-SF
  52-4GE-RJ
  52-4XG-SF


  System Specification

  Specification	5250- 12TC	5250- 12PC	5250- 28TC	5250- 52TC	5250- 28PC
  GE Density	8 RJ45 +2 RJ45 +2 SFP	8 RJ45 (POE/POE+)+2 RJ45+2 SFP	24 RJ45+2 Combo+2 SFP	48 RJ45+2 Combo+2 SFP	24 RJ45 (POE/POE+)+2 Combo+2 SFP
  POE	-	POE+ 30W POE 15.4W	-	-	POE+ 30W POE 15.4W
  Switching Capacity (Gbps)	24	24	56	104	56
  Packet Forwarding Rate(Mbps)	18	18	42	78	42
  MAC Table Capacity	16K
  VLAN	4K
  Maximum Power Consumption (100% load with POE, W)	<14.6	<272.6 (POE:240W)	<27	<53	<760.9 (POE:720W)
  AC Power Supply	100V~240V, 50Hz~60Hz
  DC Power Supply	-48V	-	-48V		-
  Heat Dissipation Pattern	Fanless	Fan cooling
  Heat Dissipation	<37 BTU/h	<368 BTU/h	<78 BTU/h	<162 BTU/h	<931 BTU/h
  Environment Parameter	Working temperature:  -5oC~+50oC, humidity: 20%~90%
  Dimensions (H*W*D, mm)	43.6*340*220		43.6*442*220		43.6*442*440
  Weight (kg)	<2.8	<3.2	<2.9	<3.0	<6.5

  Service Specification

  Function	The ZXR10 5250 Series switch
  L2 Features	Support IEEE 802.1p (COS), IEEE 802.1q (VLAN) Support IEEE 802.1d (STP)/ 802.1w (RSTP)/ 802.1s (MSTP) Support IEEE 802.3ad (LACP), Static Trunk Support IEEE 802.3z (1000Base-X) / 802.3ab (1000BaseT)  Support IEEE 802.3ae (10Gbase) Support Voice VLAN Support QinQ, Selective QinQ Support PVLAN Support Port mirroring, Traffic mirroring Support GVRP Support LLDP
  L3 Features	Support IPv4 Static routing Support DHCP Snooping, DHCP Relay, DHCP Option82 Support DHCPv6 Snooping, Option18, Option 37
  Multicast	Support IGMPv1/v2/v3 snooping Support CAC (channel access control), MVR (Multicast VLAN Registration) Support MVR Support MLD Snooping
  QoS	Support traffic classification based on Layer 2 headers, Layer 3 protocols, Layer 4 protocols, and 802.1p priority Support 8 hardware-based queues per port Support queue scheduling algorithms, such as SP, WRR, SP+WRR Support congestion avoidance mechanisms, such as WRED and tail drop Support policing/shaping based on port
  PoE	Support POE (IEEE 802.3 af) Support POE+ (IEEE 802.3 at)
  Security	Support standard ACL,VLAN ACL, Link ACL, extended ACL, mixed ACL, IPv6 ACL Support time-range ACL configuration, Bidirectional ACL Support 802.1x authentication and 802.1x server Support MAC authentication Support AAA/ RADIUS and TACACS+ authentication for login users Support SSH Support CPU anti-attack Support STP Root Guard, BPDU guard Support URPF
  Reliability	Support redundancy power supply  Support LACP Support ZESR/ZESR+(ZTE Ethernet Switch Ring), ITU.T G.8032
  Equipment Management	Support CLI, Telnet, SSH, Local and remote (Radius/Tacacs+) user authentication Support out-band management interface Support SNMP v1/v2/v3 Support Mirroring, RSPAN Support RMON Support WEB management Support NTP Support Syslog, Sflow Support Easy Manager zero-configuration and fast in-batch inspection tool Support Dying gasp power-off alarm
  Enhanced Features	Support M-BUTTON Support Zero-touch deployment
