CR2M16BASA12
-
Model:
CR2M16BASA12 of Huawei NE20E-S16 -
Detail:
NE20E-S16 AC Basic Configuration (Includes NE20E-S16 Chassis,2*MPUE1,2*AC Power,Power cord,without Software Charge and Document) -
Price:
$6500.00
- Free Technical Support
- Product Quality Protection
- On-time Shipment
- +86 755 8215 3862
- leo@uonel.com
- ywx39894
Overview (CR2M16BASA12)
CR2M16BASA12 is one of the Huawei NetEngine20E-S Series Universal Service Routers. The NetEngine20E-S Series Universal Service Routers are high-end network products developed for transportation, finance, electricity, government, education, and enterprise networks. CR2M16BASA12 is the NE20E-S16 AC Basic Configuration, including NE20E-S16 Chassis, two MPUE1, two AC Power, Power cord, without Software Charge and Document.
Quick Specs
Table 1 shows the Quick Specs.
|
Product Number |
CR2M16BASA12 |
|
Switching Capacity |
480 Gbit/s |
|
Forwarding Performance |
360 Mpps |
|
Number of Slots |
- 2 MPUs - 2 NSPs - 16 PICs |
|
Dimensions (H x W x D) |
353 mm x 442 mm x 220 mm (8U) |
|
Power Consumption (in full configuration) |
696W (DC) |
|
Weight in Full Configuration |
34.0 kg (DC) 36.0 kg (AC) |
|
Interface Type |
40 GE, 10 GE, GE/FE, OC-3c/STM-1c POS, OC-12c/STM-4c POS, Channelized OC-3/STM-1 POS, and E1/CE1 |
|
Operating Temperature |
0°C to 45°C |
Product Details

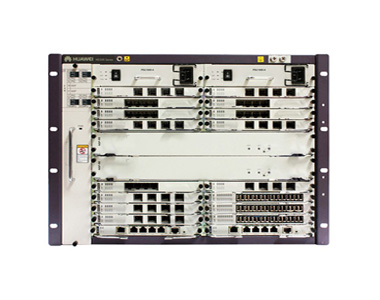

Figure 1 shows the front panel of CR2M16BASA12 for reference. These installed cards must be purchased alone.
Note:
|
① |
1 x Fan Module |
④ |
2 x NSPs |
|
② |
2 x Power supply unit (PSU) (1+1 redundancy) |
⑤ |
2 x MPUs |
|
③ |
16 x PICs |
Compare to Similar Item
Table 3 shows the comparison between CR2M16BASA12 and CR2M08BASA02.
|
Model |
CR2M16BASA12 |
CR2M08BASA02 |
|
Series |
NE20E-S16 |
NE20E-S8 |
|
Switching Capacity |
480 Gbit/s |
480 Gbit/s |
|
Forwarding Performance |
360 Mpps |
360 Mpps |
|
Number of Slots |
- 2 MPUs - 2 NSPs - 16 PICs |
- 2 MPUs - 2 NSPs - 8 PICs |
