CR2P2EBASA10

  • Model:

    Huawei NetEngine NE20E Series Router CR2P2EBASA10 Detail: NE20E-S2E Basic Configuration Includes NE20E-S 2E Chassis,2*10GE-SFP+ and 24GE-SFP fixed interface,2*AC Power,Fan Box,Power cord,without Software Charge and Document List Price: US$31,376.00 Price: US$8,785.00 You save: US$22,591.00 (72% OFF) Condition: Brand New Sealed Availability: IN STOCK
  • Detail:

    NE20E-S2E Basic Configuration Includes NE20E-S 2E Chassis,2*10GE-SFP+ and 24GE-SFP fixed interface,2*AC Power,Fan Box,Power cord,without Software Charge and Document
  • Price:

    $7800.00

  • Condition:

    Brand New Sealed
  • Availability:

    IN STOCK

  • Quantity:

  • Free Technical Support
  • Product Quality Protection
  • On-time Shipment
Overview
NE20E-S2E Basic Configuration Includes NE20E-S 2E Chassis,2*10GE-SFP+ and 24GE-SFP fixed interface,2*AC Power,Fan Box,Power cord,without Software Charge and Document



Overview (CR2P2EBASA10)

Huawei NetEngine NE20E-S Series Universal Service Router CR2P2EBASA10 supports various interface types E1/CE1, POS, CPOS, GE, 10GE, and 40GE and high-density fixed ports to provide access and aggregation WAN services as well as Ethernet multi-service transmission platform (MSTP) aggregation services, satisfying various service requirements. The NE20E-S provides reliability protection at different levels, including the equipment level, network level, and service level. It can provide a multi-level reliability solution that completely meets carrier-class reliability.



The NE20E-S2E CR2P2EBASA10 basic configuration includes NE20E-S2E Chassis,2 fixed 10GE-SFP+ ports, 24GE-SFP fixed interface, 2 * AC Power, Fan Box and Power cord. It also supports up to 320Gbps switching capacity, 70Mpps forwarding performance and 2 PICs slots. The NE20E-S also supports IP FPM developed by Huawei to measure IP network performance. IP FPM directly measures IP service packets and monitors service changes online for fast fault locating. IP FPM provides highly-accurate measurements. It can be flexibly deployed and has no impact on services.

Quick Specs

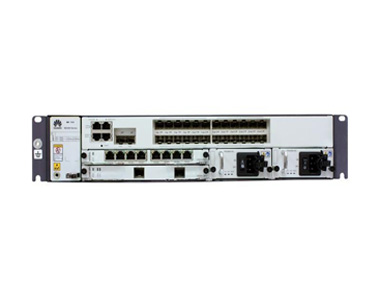

Figure 1 shows the appearance of Huawei Router - CR2P2EBASA10.

 CR2P2EBASA10

Table 1 shows the Quick Specs.

Product Code

Huawei Router - CR2P2EBASA10

Switching Capacity

160 Gbit/s

Forwarding Performance

70 Mpps

Fixed Ports

2 x 10 GE

(SFP+) and 24 x GE (SFP)

Number of Slots

2 PICs

Power module type

AC power module

Weight

10.3 kg

Dimensions (W x D x H)

89 mm x 442 mm x 220 mm (2U)


Compare to Similar Items

Table 3 shows the comparison between CR2P2EBASA10 and CR2M04BASD02.

Model

CR2P2EBASA10

CR2M04BASD02

Switching Capacity

160 Gbit/s

480 Gbit/s

Forwarding Performance

70 Mpps

180 Mpps

Fixed Ports

2 x 10 GE

(SFP+) and 24 x GE (SFP)

none

Number of Slots

2 PICs

2 MPUs

1 NSP

4 PICs

Power module type

AC power module

DC power module

Weight

10.3 kg

13.7 kg

Dimensions (W x D x H)

89 mm x 442 mm x 220 mm (2U)

132 mm x 442 mm x 220 mm
