CR2M08BASA02

  • Model:

    Huawei NetEngine NE20E Series Router CR2M08BASA02
  • Detail:

    NE20E-S 8 AC Basic Configuration Includes NE20E-S 8 Chassis,2*MPUE,2*AC Power,Power cord,without Software Charge and Document
  • Price:

    $9000.00

  • Condition:

    Brand New Sealed
  • Availability:

    IN STOCK

  • Quantity:

  • Free Technical Support
  • Product Quality Protection
  • On-time Shipment
Overview
NE20E-S 8 AC Basic Configuration Includes NE20E-S 8 Chassis,2*MPUE,2*AC Power,Power cord,without Software Charge and Document



Overview (CR2M08BASA02)

The Huawei NE20E-S CR2M08BASA02 router can be flexibly deployed at the access and aggregation layer of IP/MPLS networks and work with other NE routers to provide an all-around network solution for enterprise users, satisfying diversified service requirements in the future. Huawei NetEngine series router CR2M08BASA02 includes following features:

1) 2 MPU slots, 2 NSP slots, 8 PIC slots, 2 AC power supplies

2) 7.94Tbps Switching capacity, 360Mpps forwarding performance

3) Advanced VRP Platform, Huawei-developed Chips, Service on Demand

4) Leading Industrial Design, Energy-conserving

5) Supports various interface types: E1/CE1, POS, CPOS, GE, 10GE, and 40GE

6) Powerful routing capabilities : RIP, OSPF, IS-IS, BGP, IPV6, Multicast

7) Reliability, Flexiblity, Security, Easy to Deploy and Maintain, Innovative IP Hard Pipe Solution

Quick Specs

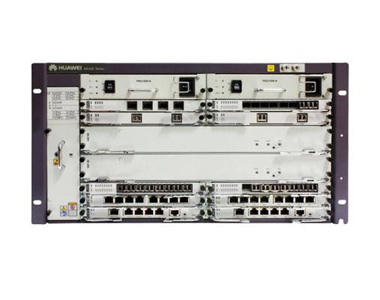

Figure 1 shows the appearance of Huawei Router - CR2M08BASA02.

 CR2M08BASA02

Table 1 shows the Quick Specs.

Product Code

Huawei Router - CR2M08BASA02

Switching Capacity

480 Gbit/s

Forwarding Performance

360 Mpps

Fixed Ports

none

Number of Slots

2 MPUs

2 NSPs

8 PICs

Power module type

AC power module

Weight

27.0 kg (AC)

Dimensions (W x D x H)

264 mm x 442 mm x 220 mm (AC, 6U)
