S5700-10P-PWR-LI-AC
-
Model:
S5700-10P-PWR-LI-AC -
Detail:
8 Ethernet 10/100/1000 PoE+ ports, 2 Gig SFP, AC 110/220V -
Price:
$500.00
- Free Technical Support
- Product Quality Protection
- On-time Shipment
- +86 755 8215 3862
- leo@uonel.com
- ywx39894
Overview (S5700-10P-PWR-LI-AC)
The Huawei S5700-10P-PWR-LI-AC is simplified gigabit switches with super-flexible, easy-to-manage platform to optimize L3 switching capacity and downstream port bandwidth from 100 Mbit/s to 1 Gbit/s. The additional PoE technology can ensure the safety of power supply while ensuring the normal transmission of data signals to minimize costs. Then its various options include lithium-oxide battery backup, CSFP interfaces, and zero-touch remote maintenance, as well as models customized, meeting specialized requirements of users. Ideal for use as an access or aggregation switch in a campus network, it strives to provide energy-saving and cost-effective gigabit to the desktop solution.
Quick Specs

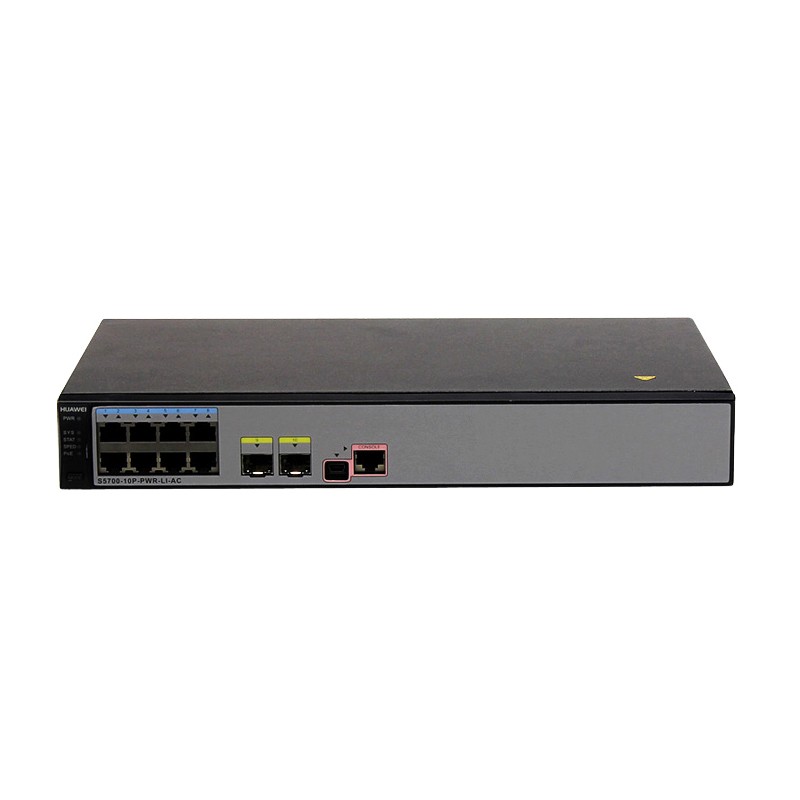

Figure 1 shows the appearance of Huawei S5700-10P-PWR-LI-AC.
Table 1 shows the Quick Specs.
|
Product Code |
S5700-10P-PWR-LI-AC |
|
Ports |
8 GE POE ports, 2 GE SFP ports |
|
Memory (RAM) |
256 MB |
|
Flash |
200 MB |
|
MAC Address Table Size |
16 MAC |
|
Voltage Required |
AC 120/230 V ( 50/60 Hz ) |
|
Power Device |
AC power supply |
|
Power Consumption Operational |
< 60W |
|
Forwarding Performance |
15 Mpps |
|
Switching Capacity |
256 Gbit/s |
|
Dimensions (W x D x H) |
320 mm x 220 mm x 43.6 mm |
|
Package Weight |
3.5kg |
|
PoE |
PoE+ |
Product Details
Figure 2 shows the front panel of Huawei S5700-10P-PWR-LI-AC.
Note:
|
① |
Eight PoE+ 10/100/1000BASE-T ports |
③ |
One mini USB port |
|
② |
Two 1000BASE-X ports |
④ |
One console port |
Figure 3 shows the back panel of Huawei S5700-10P-PWR-LI-AC.
Note:
|
① |
Ground screw |
|
② |
AC socket |
|
③ |
Jack for AC terminal locking latch |
*The ground screw is used with a ground cable.
*AC socket is used with an AC power cable.
*The AC terminal locking latch is not delivered with the switch.
