S5700S-52P-LI-AC
-
Model:
S5700S-52P-LI-AC 02353835 Huawei Quidway S5700 Switch -
Detail:
48 Ethernet 10/100/1000 ports, 4 Gig SFP, AC 110/220V -
Price:
$650.00
- Free Technical Support
- Product Quality Protection
- On-time Shipment
- +86 755 8215 3862
- leo@uonel.com
- ywx39894
Overview (S5700S-52P-LI-AC)
The S5700S-52P-LI-AC gigabit enterprise switch is next-generation energy-saving switch developed by Huawei. With 48 Ethernet ports, 4 GE SFP ports，it provides a large switching capacity and high-density GE ports to implement 10 Gbit/s upstream transmissions, widely used in various application scenarios like enterprise park access, convergence, gigabit access of data center application scenarios. Using advanced energy conservation technology, the S5700S-52P-LI-AC is dedicated to helping enterprise customers build a reliable and secure next-generation IT network.
Quick Specs

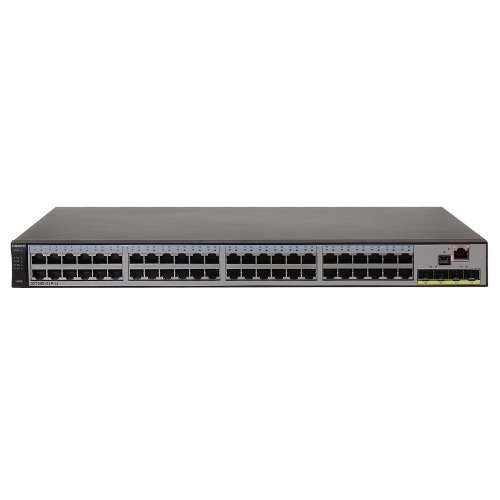

Figure 1 shows the appearance of Huawei S5700S-52P-LI-AC.
Table 1 shows the Quick Specs.
|
Product Code |
S5700S-52P-LI-AC |
|
Fixed Ports |
48 x 10/100/1,000 Base-T Ethernet ports, 4 x GE SFP ports |
|
MAC Address Table Size |
16 MAC |
|
Voltage Required |
AC Rated voltage range: 100V to 240V AC, 50/60 Hz Maximum voltage range: 90V to 264V AC, 47/63 Hz |
|
Power Device |
AC power supply, supporting RPS |
|
Power Consumption Operational |
< 48.4W |
|
Forwarding Performance |
78 Mpps |
|
Switching Capacity |
256 Gbit/s |
|
Dimensions (W x D x H) |
442 mm x 310 mm x 43.6 mm |
|
Weight |
4.7 kg |
Product Details
Figure 2 shows the front panel of Huawei S5700S-52P-LI-AC.
Note:
|
① |
Forty-eight 10/100/1000BASE-T ports |
② |
Four 1000BASE-X ports |
|
③ |
One console port |
④ |
One mini USB port |
Figure 3 shows the back panel of Huawei S5700S-52P-LI-AC.
Note:
|
① |
Ground screw |
② |
RPS socket |
|
③ |
Jack for AC terminal locking latch |
④ |
AC socket |
* The ground screw is used with a ground cable.
*RPS socket is used with an RPS cable, which is not hot swappable.
*The AC terminal locking latch is not delivered with the switch.
*AC socket is used with an AC power cable.
