S5720S-28X-SI-AC
-
Model:
Huawei S5720S-28X-SI-AC -
Detail:
24 Ethernet 10/100/1000 ports,4 10 Gig SFP+,AC 110/220V -
Price:
$730.00
- Free Technical Support
- Product Quality Protection
- On-time Shipment
- +86 755 8215 3862
- leo@uonel.com
- ywx39894
Overview (S5720S-28X-SI-AC)
Huawei S5720S-28X-SI-AC switch is a retail version. It offers twenty-four Ethernet 10/100/1000 ports, and four 10 Gig SFP+ uplinks.
Quick Specs

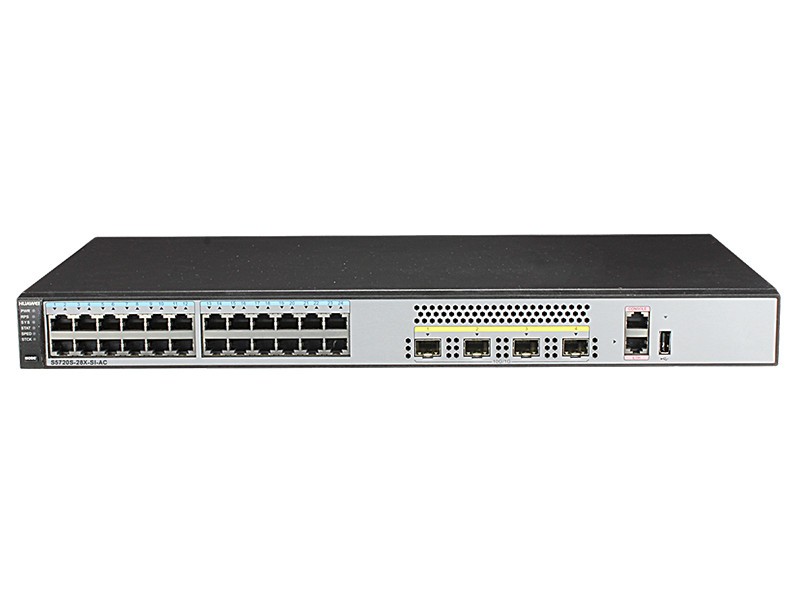

Figure 1 shows the appearance of Huawei S5720S-28X-SI-AC switch.
Table 1 shows the Quick Specs.
|
Product Code |
S5720S-28X-SI-AC |
|
Downlink Ports |
24 × Ethernet 10/100/1000 ports |
|
Uplink Ports |
4 × 10GE SFP+ ports |
|
Forwarding Performance |
96 Mpps |
|
Switching Capacity |
336 Gbit/s |
|
Stack |
Supported |
|
Stack connection mode |
GE electrical ports and 10GE SFP+ optical ports on the front panel |
|
RAM |
512 MB |
|
Flash Memory |
240 MB |
|
Power |
AC Power Supply |
|
Heat Dissipation |
Built-in fans for forced air cooling |
|
Dimensions (W x D x H) |
44.2 cm x 22 cm x 4.36 cm |
|
Weight (Kg) |
4.75 Kg |
Product Details
Figure 2 shows the front panel of Huawei S5720S-28X-SI-AC switch.
Note:
|
① |
24 × 10/100/1000BASE-T ports |
④ |
One ETH management port |
|
② |
One console port |
⑤ |
One USB port |
|
③ |
4 × 10GE SFP+ ports |
Figure 3 shows the back panel of Huawei S5720S-28X-SI-AC switch.
Note:
|
① |
Ground screw |
③ |
Jack for AC terminal locking latch |
|
② |
RPS socket |
④ |
AC socket |
· Ground screw is used with a ground cable.
· RPS socket is used with an RPS cable.
