S5700-28P-PWR-LI-AC
-
Model:
S5700-28P-PWR-LI-AC 02353175 Huawei Quidway S5700 Switch -
Detail:
24 Ethernet 10/100/1000 PoE+ ports, 4 Gig SFP, AC 110/220V -
Price:
$750.00
- Free Technical Support
- Product Quality Protection
- On-time Shipment
- +86 755 8215 3862
- leo@uonel.com
- ywx39894
Overview (S5700-28P-PWR-LI-AC)
Huawei S5700-28P-PWR-LI-AC is Layer 2 Ethernet Stackable Switch, supporting 24 x PoE+ 10/100/1000BASE-T ports and 4 x GE SFP Ports.
Quick Specs

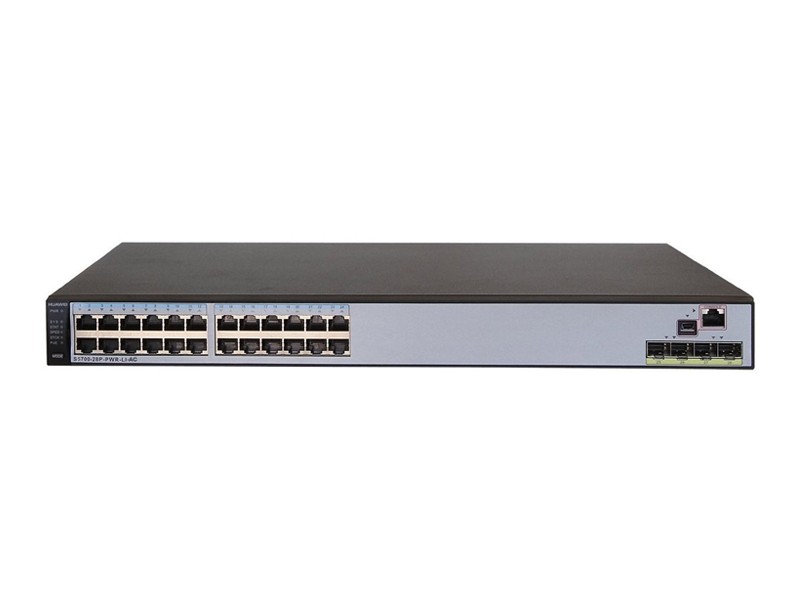

Figure 1 shows the appearance of Huawei S5700-28P-PWR-LI-AC switch.
Table 1 shows the Quick Specs.
|
Product Code |
S5700-28P-PWR-LI-AC |
|
Downlink Ports |
24 x PoE+ 10/100/1000BASE-T ports |
|
Uplink Ports |
4 x GE SFP Ports |
|
MAC Address |
16K |
|
VLAN |
4K |
|
Forwarding Performance |
96 Mpps |
|
Switching Capacity |
256 Gbit/s |
|
Stack ports |
-V200R001: the last two uplink 1000Base-X optical ports -V200R002 and later versions: four uplink 1000Base-X optical ports |
|
Power |
AC 110/220V & RPS1800 power supply |
|
Heat Dissipation |
Forced air cooling by Built-in fans |
|
Memory (RAM) |
256 MB |
|
Flash |
-V200R001: 64 MB -V200R002 and later versions: 200 MB |
|
Dimensions (W x D x H) |
442.0 mm x 310.0 mm x 43.6 mm |
Product Details
Figure 2 shows the front panel of Huawei S5700-28P-PWR-LI-AC switch.
Note:
|
① |
24 x PoE+ 10/100/1000BASE-T ports |
③ |
One console port |
|
② |
Four 1000BASE-X ports |
④ |
One mini USB port |
Four 1000BASE-X ports support modules and cables:
- GE optical module
- GE-CWDM optical module
- GE-DWDM optical module
- GE copper module (applicable in V200R002C00 and later versions)
- Stack optical module (applicable in V200R007C00 and later versions)
- 1 m and 10 m SFP+ copper cables
- 3 m and 10 m AOC cables (applicable in V200R003C00 and later versions)
Figure 3 shows the back panel of Huawei S5700-28P-PWR-LI-AC switch.
Note:
|
① |
Ground Screw |
③ |
Jack for AC Terminal Locking Latch |
|
② |
RPS Socket |
④ |
AC Socket |
·Ground Screw is used with a ground cable.
·RPS Socket is used with an RPS cable which is not hot swappable.
·AC socket is used with an AC power cable.
·The AC terminal locking latch is not delivered with the switch.
