S5720-32P-EI-AC
-
Model:
S5720-32P-EI-AC Huawei S5700 Series Switch -
Detail:
S5720-32P-EI-AC(24 Ethernet 10/100/1000 ports,8 Gig SFP,AC 110/220V,front access) -
Price:
$900.00
- Free Technical Support
- Product Quality Protection
- On-time Shipment
- +86 755 8215 3862
- leo@uonel.com
- ywx39894
Overview (S5720-32P-EI-AC)
Huawei S5720-32P-EI-AC supports twenty-four Ethernet 10/100/1000 ports and eight Gig SFP. There are two QSFP+ stack optical ports on the back panel.
Quick Specs

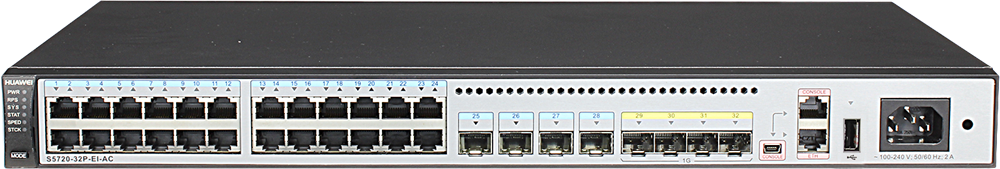

Figure 1 shows the appearance of Huawei S5720-32P-EI-AC switch.
Table 1 shows the Quick Specs.
|
Product Code |
S5720-32P-EI-AC |
|
Downlink Ports |
24 × Ethernet 10/100/1000 ports |
|
Uplink Interfaces |
8 × Gig SFP |
|
Forwarding Performance |
48 Mpps |
|
Switching Capacity |
598 Gbit/s |
|
Stack |
Supported |
|
Stack Ports |
Two fixed QSFP+ stack ports on the rear card |
|
Memory (RAM) |
2 GB |
|
Flash |
340 MB |
|
Dimensions (W x D x H) |
44.2 cm x 22 cm x 4.36 cm |
|
Weight (Kg) |
4.44 Kg |
Product Details
Figure 2 shows the front panel of Huawei S5720-32P-EI-AC switch.
Note:
|
① |
24 × 10/100/1000BASE-T ports |
⑥ |
One USB port |
|
② |
4 × 100/1000BASE-X ports |
⑦ |
AC socket |
|
③ |
4 × 1000BASE-X ports |
⑧ |
Jack for AC terminal locking latch |
|
④ |
One mini USB port |
⑨ |
One console port |
|
⑤ |
One ETH management port |
Figure 3 shows the back panel of Huawei S5720-32P-EI-AC switch.
Note:
|
① |
Ground screw |
|
② |
Two QSFP+ stack optical ports |
|
③ |
RPS socket |
