S5700-28C-EI
-
Model:
S5700-28C-EI 02352338 Huawei Quidway S5700 Switch -
Detail:
24 10/100/1000Base-T, Dual Slots of power, Single Slot of Flexible Card, Without Flexible Card and Power Module -
Price:
$1300.00
- Free Technical Support
- Product Quality Protection
- On-time Shipment
- +86 755 8215 3862
- leo@uonel.com
- ywx39894
Overview (S5700-28C-EI)
The S5700-28C-EI gigabit enterprise switch is next-generation energy-saving switch developed by Huawei to meet the demand for high-bandwidth access and Ethernet multi-service aggregation. With 24 GE ports and 2 extended slots, it provides a large switching capacity and high-density GE ports to implement 10 Gbit/s upstream transmissions, widely used in various application scenarios like enterprise park access, convergence, gigabit access of data center application scenarios. The S5700-28C-EI is easy to install and maintain, reducing workloads for network planning, construction, and maintenance, then it uses advanced reliability, security, and energy conservation technology to help enterprise customers build a next-generation IT network.
Quick Specs

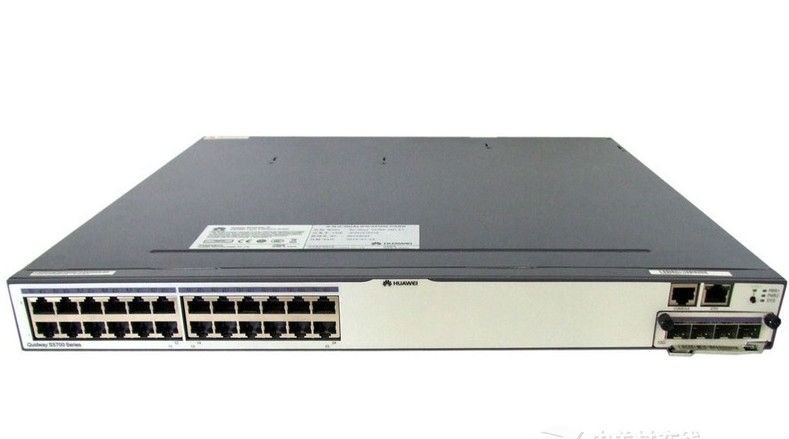

Figure 1 shows the appearance of Huawei S5700-28C-EI.
Table 1 shows the Quick Specs.
|
Product Code |
S5700-28C-EI |
|
Fixed Ports |
24 x 10/100/1,000 Base-T |
|
Extended Slots |
two extended slots, one for an uplink subcard and the other for a stack card. |
|
Memory (RAM) |
256 MB |
|
Flash |
32 MB |
|
MAC Address Table Size |
32 MAC |
|
Voltage Required |
AC Rated voltage range: 100V to 240V AC, 50/60 Hz Maximum voltage range: 90V to 264V AC, 50/60 Hz |
|
Power Device |
Double hot-swappable AC/DC power supplies |
|
Power Consumption Operational |
< 60W |
|
Forwarding Performance |
96 Mpps |
|
Switching Capacity |
256 Gbit/s |
|
Dimensions (W x D x H) |
442 mm x 420 mm x 43.6 mm |
|
Weight |
6.05kg |
|
Compliant Standards |
IEEE 802.1d compliance |
Product Details
Figure 2 shows the front panel of Huawei S5700-28C-EI.
Note:
|
① |
Twenty-four 10/100/1000BASE-T ports |
③ |
ETH management port |
|
② |
Power indicator |
④ |
Front card slot |
*The front card slot has been equipped with the card, but the card is not contained of the machine.
Figure 3 shows the back panel of Huawei S5700-28C-EI.
Note:
|
① |
ESD jack |
④ |
Power module slot 2 |
|
② |
Rear card slot |
⑤ |
Power module slot 1 |
|
③ |
Fan slot |
|
|
*Ventilating fan, cards and power modules have been installed in the diagram, but they should be purchased alone.
