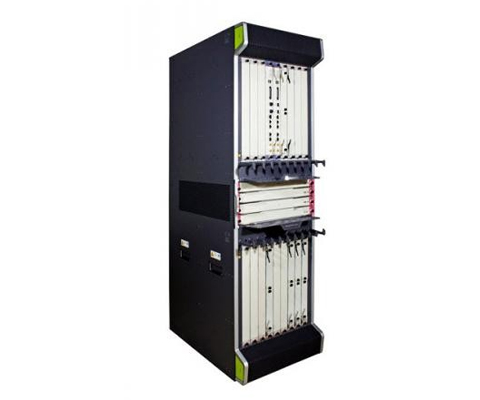

Huawei CR5P16BASA74 NetEngine40E series universal service router is Large-capacity core and edge routers for converged networks supporting video, voice, and data services, with comprehensive user management and accounting features. The CR5P16BASA74 NE40E-X16 basic configuration includes NE40E-X16 Chassis, 2 MPUs, 4 SFUs (200G) and 8 AC Power supplies.

1) High-capacity routing boards up to 480 Gbit/s and 1 Tbit/s line speeds; virtualization and SDN support
2) Designed for reliability and comprehensive support for service management including L2 and L3 VPNs, multicast VPN, MPLS TE, QoS, GRE, IPsec, NetStream, and full virtualization
3) Interface type: 100GE/40GE, 10G-LAN/WAN, GE/FE OC-192c/STM-64c POS, OC-48c/STM-16c POS, OC-12c/STM-4c POS, OC-3c/STM-1c POS, Channelized STM-4, Channelized OC-3/STM-1, OC-3c/STM-1c ATM, OC-12c/STM-4c ATM, E3/CT3 CE1/CT1 E1/T1
4) Up to 12.58Tbit/s switching capacity, 5760Mpps forwarding performance, 1+1 backup for SRUs, 2+1 backup for SFUs
5) IP hard-pipe technology supports leased lines similar to SONET and Synchronous Digital Hierarchy (SDH) networks
6) Huawei’s proprietary IP Flow Performance Measurement (FPM) monitors services in real time for rapid fault detection
7) Non-Stop Routing (NSR), Non-Stop Forwarding (NSF), and In-Service Software Upgrade (ISSU) improve services recovery and ensure uninterrupted service forwarding
