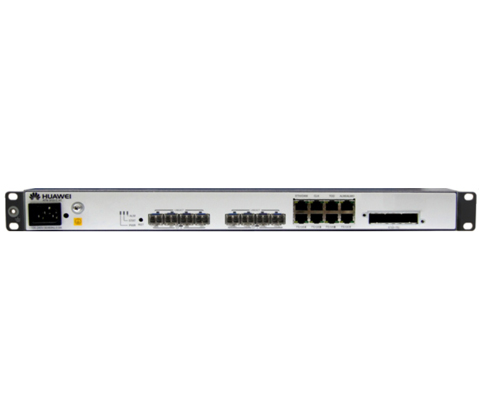

Huawei ATN 910I-C AC ANFM0HSAEC00 Router
-
Model:
Huawei ATN Series -
Detail:
-
Price:
$1500.00
- Free Technical Support
- Product Quality Protection
- On-time Shipment
- +86 755 8215 3862
- leo@uonel.com
- ywx39894
Huawei ATN 910I-C AC ANFM0HSAEC00 Router
Functions and features of the ATN 910I
|
Function and Feature |
Description |
|---|---|
|
Switching capability |
24 Gbit/s (12 Gbit/s for the upstream traffic and 12 Gbit/s for the downstream traffic) |
|
Auxiliary interface function |
Provides one NM serial port or NM network port to communicate with the NMS so that the NMS can manage and query the equipment. |
| Provides two interfaces for inputting and outputting the external clock/time to obtain the external clock/time information. | |
| Provides one alarm input/output interface. The interface provides three inputs of alarm digital parameters. | |
|
Ethernet interface function |
FE SFP interfaces support FE optical modules and FE electrical modules. GE SFP interfaces support GE optical modules and GE electrical modules. FE/GE SFP interfaces support FE optical modules, FE electrical modules, GE optical modules, and GE electrical modules. |
|
FE electrical interfaces support signals at 10 Mbit/s and 100 Mbit/s. FE/GE electrical interfaces support signals at 10 Mbit/s, 100 Mbit/s, and 1000 Mbit/s. Electrical interfaces support the PoE function and a maximum output power of 30 W (only on the ATN 910I-P). |
|
| Supports inloops and outloops. | |
| GE interfaces support flow control. | |
| Supports Layer 2 and Layer 3 working modes. | |
|
Supports physical-layer clock synchronization (synchronous Ethernet). Supports IEEE 1588v2 and IEEE 1588 ACR. |
|
|
E1 interface function |
Supports a 75-ohm or 120-ohm impedance value (based on the actual E1 cable) |
| Supports the E1 and CE1 modes. | |
| Supports the master/slave clock mode. | |
| Supports the HDB3 line coding (unconfigurable). | |
| Supports inloops and outloops. | |
| Supports the PRBS function in framed or unframed mode of an E1 interface in the receive/transmit direction. | |
| Supports the ATM, TDM, and PPP protocols. |
Functional block diagram of the ATN 910I
