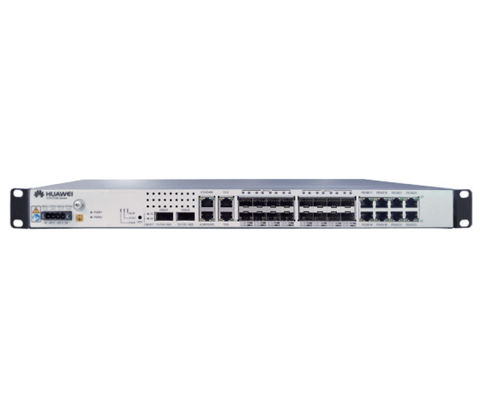

Huawei ATN 910B-F DC ANGM01HSDD00 Router

  • Model:

    Huawei ATN Series
  • Detail:

  • Price:

    $2500.00

  • Condition:

    Brand New Sealed
  • Availability:

    IN STOCK

  • Quantity:

  • Free Technical Support
  • Product Quality Protection
  • On-time Shipment
Overview

 Huawei ATN 910B-F DC ANGM01HSDD00  Router

 Functions and features of the ATN 910B

Function and Feature

Description

Switching capability

ATN 910B-A: 88 Gbit/s (44 Gbit/s for the upstream traffic and 44 Gbit/s for the downstream traffic)

ATN 910B-B: 88 Gbit/s (44 Gbit/s for the upstream traffic and 44 Gbit/s for the downstream traffic)

ATN 910B-D: 128 Gbit/s (64 Gbit/s for the upstream traffic and 64 Gbit/s for the downstream traffic)

ATN 910B-E: 128 Gbit/s (64 Gbit/s for the upstream traffic and 64 Gbit/s for the downstream traffic)

ATN 910B-F: 128 Gbit/s (64 Gbit/s for the upstream traffic and 64 Gbit/s for the downstream traffic)

Auxiliary interface function

Provides one NM serial port or NM network port to communicate with the NMS so that the NMS can manage and query the equipment.

Provides two interfaces for inputting and outputting the external clock/time to obtain the external clock/time information.
Provides one alarm input/output interface. The interface provides three inputs of alarm digital parameters.

Provides one 50-ohm clock test interface to output the 1 PPS clock signals (only on the ATN 910B-E).

Ethernet interface function

The FE/GE SFP interface supports FE optical modules, GE optical modules, and GE electrical modules.

The 10GE XFP interface supports 10GE XFP optical modules (only on the ATN 910B-A/ATN 910B-B).

The 10GE SFP+ interface supports 10GE SFP+ optical modules (only on the ATN 910B-D/ATN 910B-E/ATN 910B-F).

FE/GE electrical interfaces support signals at 10 Mbit/s, 100 Mbit/s, and 1000 Mbit/s.

Supports inloops and outloops.
GE interfaces support flow control.
Supports Layer 2 and Layer 3 working modes.

Supports physical-layer clock synchronization (synchronous Ethernet).

Supports IEEE 1588v2 and IEEE 1588 ACR.

E1 interface function (only on the ATN 910B-A)

Supports a 75-ohm or 120-ohm impedance value (based on the actual E1 cable)

Supports the E1 and CE1 modes.
Supports the master/slave clock mode.
Supports the HDB3 line coding (unconfigurable).
Supports inloops and outloops.
Supports the PRBS function in framed or unframed mode of an E1 interface in the receive/transmit direction.
Supports the ATM, TDM, and PPP protocols.
