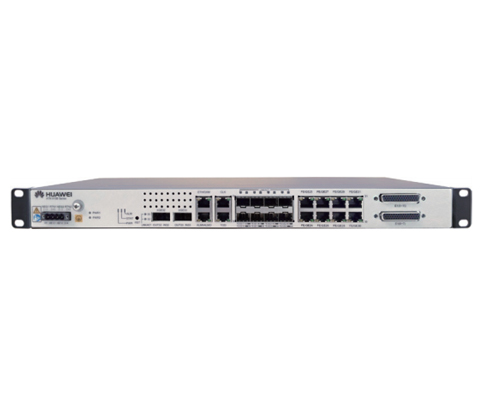

Huawei ATN 910 AND1ML1/AND1ML1A - 16 Channels E1 Electrical Interface Board
-
Model:
Huawei ATN Series -
Detail:
-
Price:
$1500.00
- Free Technical Support
- Product Quality Protection
- On-time Shipment
- +86 755 8215 3862
- leo@uonel.com
- ywx39894
Share:
Overview
Huawei ATN 910 AND1ML1/AND1ML1A - 16 Channels E1 Electrical Interface Board
Functions and features of the AND1ML1/AND1ML1A
|
Function and Feature |
Remarks |
|
|---|---|---|
|
Basic function |
Provides 16 E1 interfaces. |
|
|
Supports the hot swappable function. |
||
| Detects the temperature and voltage of the board. | ||
| Interface function | Impedance supported by the interface | AND1ML1: 75 ohm |
| AND1ML1A: 120 ohm | ||
| Supports the E1 and CE1 modes. | ||
| Supports the master clock mode (unconfigurable). | ||
| Supports the HDB3 line coding (unconfigurable). | ||
| Supports inloops and outloops. | ||
| Supports the PRBS function in framed or unframed mode of an E1 interface in the receive/transmit direction. | ||
| ATM | Number of supported ATM E1 services |
16 |
| Number of supported IMA groups |
16 |
|
|
Maximum number of E1 links in each IMA group |
16 |
|
| Encapsulates ATM VPC/VCC service to the PWE3 in the N-to-1 (N≤32) or 1-to-1 format. | ||
| Supports the ATM bundle function. | ||
| Number of supported PVCs/PVPs | 256 | |
| Number of supported local ATM CCCs | 32 | |
| Number of supported remote ATM PWE3s | 64 | |
| TDM |
Supports CES services in CESoPSN and SAToP modes. |
|
|
Supports the timeslot compression function. For services in CESoPSN mode, a minimum of 2 timeslots can be bundled during serial port configuration. |
||
|
Supports the fractional E1. Different timeslots of an E1 can be bound to different CES PWs. |
||
| Number of supported local TDM CCCs | 8 | |
| Number of supported remote TDM PWE3s | 16 | |
| PPP | Number of supported PPP links |
16 |
| Number of supported ML-PPP groups |
8 |
|
|
Maximum number of links supported by each ML-PPP group |
16 |
|
