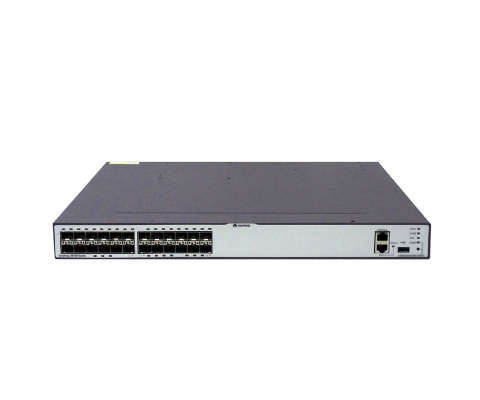

Huawei S6700 Series S6700-24-EI
-
Model:
Huawei S6700 Series Switches -
Detail:
High-performance, super-reliable 10 GE switches with comprehensive Quality of Service and security capabilities, ideal for use as access switches in large-scale data centers and core switches in campus networks. -
Price:
$3300.00
- Free Technical Support
- Product Quality Protection
- On-time Shipment
- +86 755 8215 3862
- leo@uonel.com
- ywx39894
S6700 Series 10 GE Switches
High-performance, super-reliable 10 GE switches with comprehensive Quality of Service and security capabilities, ideal for use as access switches in large-scale data centers and core switches in campus networks.
Advanced switching architecture and line-card buffering ensure smooth, sustained performance; Huawei’s intelligent iStack virtualization technology enables both easy management and expandability. Tight integration with Huawei’s eSight NMS for efficient provisioning, reconfiguring, and administration.
S6700 Series switches are available in 24-port and 48-port S6700-EI models, for resilient IPv4 and smooth migration to IPv6 networking.
Specifications
|
Specifications |
S6700-24-EI |
S6700-48-EI |
|
Switching Capacity |
960 Gbit/s |
960 Gbit/s |
|
Forwarding Performance |
360 Mpps |
720 Mpps |
|
Port |
24 x GE SFP/10 GE SFP+ ports |
48 x GE SFP/10 GE SFP+ ports |
|
IPv4 Routing |
Static routing, RIPv1, RIPv2, ECMP, and URPF OSPF, IS-IS, and BGP VRRP Policy-based routing Routing policy |
|
|
Multicast |
Static Layer 2 multicast MAC address MAC-based multicast forwarding IGMP snooping and IGMP fast leave Multicast VLAN MLD snooping IGMP proxy Controllable multicast Port-based multicast traffic statistics IGMP v1/v2/v3 PIM-SM, PIM-DM, and PIM-SSM MSDP |
|
|
MPLS Features |
MPLS L3VPN MPLS L2VPN (VPWS/VPLS) MPLS-TE MPLS QoS |
|
|
QoS/ACL |
Rate limiting on packets sent and received by an interface Packet redirection Port-based traffic policing and two-rate, three-color CAR Eight queues on each port WRR, DRR, SP, WRR + SP, and DRR + SP queue scheduling algorithms Re-marking of the 802.1p priority and DSCP priority Packet filtering at Layer 2 to Layer 4, filtering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address, port number, protocol type, and VLAN ID Rate limiting in each queue and traffic shaping on ports |
|
|
Security |
DoS attack defense, ARP attack defense, and ICMP attack defense 802.1x authentication and limit on the number of users on an interface AAA authentication, RADIUS authentication, and TACACS authentication SSH v2.0 Hypertext Transfer Protocol Secure (HTTPS) CPU defense Blacklist and whitelist |
|
|
Interoperability |
VBST (Compatible with PVST/PVST+/RPVST) LNP (Similar to DTP) VCMP (Similar to VTP) For detailed interoperability certifications and test reports, click HERE. |
|
