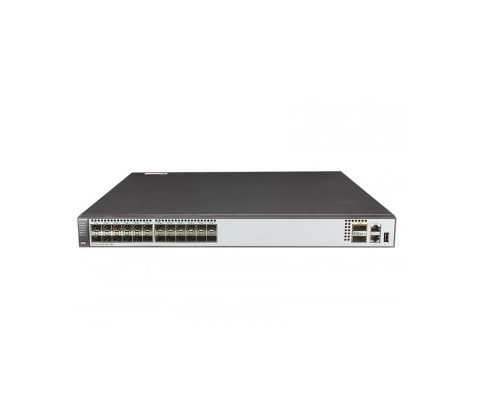

Huawei S6720S-26Q-EI-24S-AC S6720S-26Q-EI-24S-DC

Switching Capacity

2.56 Tbit/s

2.56 Tbit/s

Forwarding Performance

720 Mpps

1,080 Mpps

Fixed Ports

24 x 10 GE SFP+, 2 x 40 GE QSFP+ ports

48 x 10 GE SFP+, 2 x 40 GE QSFP+ ports

Extended Slot

One extended slot for 4 x 40 GE QSFP+ interface card

MAC Address Table

288k MAC address entries

MAC address learning and aging

Static, dynamic, and black hole MAC address entries

Packet filtering based on source MAC addresses

IPv4 Routing

Static routing, RIPv1, RIPv2, ECMP, and URPF

OSPF, IS-IS, and BGP

VRRP

Policy-based routing

IPv6 Routing

Static route

RIPng

OSPFv3

BGP4+

ISISv6

Multicast

Static Layer 2 multicast MAC address

MAC-based multicast forwarding

IGMP snooping and IGMP fast leave

Multicast VLAN

MLD snooping

IGMP proxy

Controllable multicast

Port-based multicast traffic statistics

IGMP v1/v2/v3

PIM-SM, PIM-DM, and PIM-SSM

MSDP

QoS/ACL

Rate limiting on packets sent and received by an interface

Packet re-direction

Port-based traffic policing and two-rate three-color CAR

Eight queues on each port

WRR, DRR, SP, WRR + SP, and DRR + SP queue scheduling algorithms

Re-marking of the 802.1p priority and DSCP priority

Packet filtering at Layer 2 to Layer 4, filtering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address, port number, protocol type, and VLAN ID

Rate limiting in each queue and traffic shaping on ports

Security

User privilege management and password protection

DoS attack defense, ARP attack defense, and ICMP attack defense

Binding of the IP address, MAC address, interface, and VLAN

Port isolation, port security, and sticky MAC

Blackhole MAC address entries

Limit on the number of learned MAC addresses

802.1x authentication and limit on the number of users on an interface

AAA, RADIUS, and TACACS authentications

SSH v2.0

Hypertext Transfer Protocol Secure (HTTPS)

CPU defense

Blacklist and whitelist

Interoperability

VLAN-based Spanning Tree (VBST) (interoperating with PVST, PVST+, and RPVST)

Link-type Negotiation Protocol (LNP) (similar to DTP)

VLAN Central Management Protocol (VCMP) (similar to VTP)
