huawei EA5800-X15 olt
-
Model:
-
Detail:
-
Price:
Request For Quotation
- Free Technical Support
- Product Quality Protection
- On-time Shipment
- +86 755 8215 3862
- leo@uonel.com
- ywx39894

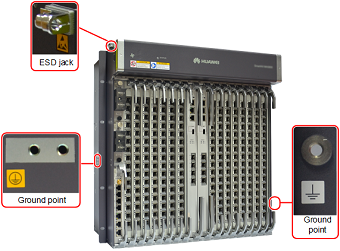

An EA5800-X15 service subrack provides 20 slots, including 2 slots for control boards, 2 slots for power boards, 1 slot for the universal interface board, and 15 slots for service boards. The fan tray of the EA5800-X15 service subrack has six fans and fan monitoring board H901FMLA, and functions heat dissipation, monitoring, and fan speed adjustment, which ensures that the device works at a stable temperature
|
Specification |
Value |
|---|---|
|
Dimensions (H x W x D, including mounting ears) |
486 mm x 482.6 mm x 287 mm |
|
Dimensions (H x W x D, excluding mounting ears) |
486 mm x 442 mm x 287 mm |
|
Maximum weight at full configuration (including mounting ears) |
35 kg |
Power supply specifications of the EA5800-X15 service subrack
|
Specification |
Value |
|---|---|
|
Power supply mode |
DC (dual power for backup) |
|
Rated voltage |
-48 V / -60 V |
|
Working voltage range |
-38.4 V to -72 V |
|
Maximum input current |
60 A |
