huawei EA5800-X7

  • Model:

  • Detail:

  • Price:

    Request For Quotation

  • Condition:

    Brand New Sealed
  • Availability:

  • Quantity:

  • Free Technical Support
  • Product Quality Protection
  • On-time Shipment
Overview

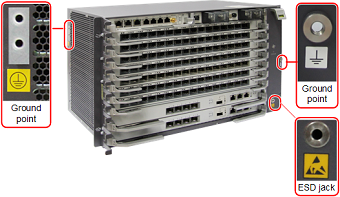

An EA5800-X7 service subrack provides 12 slots, including 2 slots for control boards, 2 slots for power boards, 1 slot for the universal interface board, and 7 slots for service boards.The fan tray of the EA5800-X7 service subrack has six fans and fan monitoring board H901FMMA, and functions heat dissipation, monitoring, and fan speed adjustment, which ensures that the device works at a stable temperature.

Dimensions and weight of the EA5800-X7

Specification

Value

Dimensions (H x W x D, excluding mounting ears)

263.9 mm x 442.0 mm x 268.7 mm

Dimensions (H x W x D, including mounting ears of IEC standard)

263.9 mm x 482.6 mm x 268.7 mm

Dimensions (H x W x D, including mounting ears of ETSI standard)

263.9 mm x 535.0 mm x 268.7 mm

Maximum fully-loaded weight (including mounting ears)

26 kg

Power supply parameters of the EA5800-X7

Specification

Value

Power supply mode

DC (dual power for backup)

Rated voltage

-48 V / -60 V

Working voltage range

-38.4 V to -72 V

Maximum input current

40 A
